Anilox Roller Ultrasonic Cleaning Machine 118L for Printing Industry
Reference price range$6,500.00 - $7,900.00
Request a project quote
Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.
Specifications and product details
The complete original product information is kept below for technical review.
1. Unit Size: L2400*W550*H600mm, tank Size: L2060*W350*H165mm, the tank body is made of SUS304 T2.0 steel.

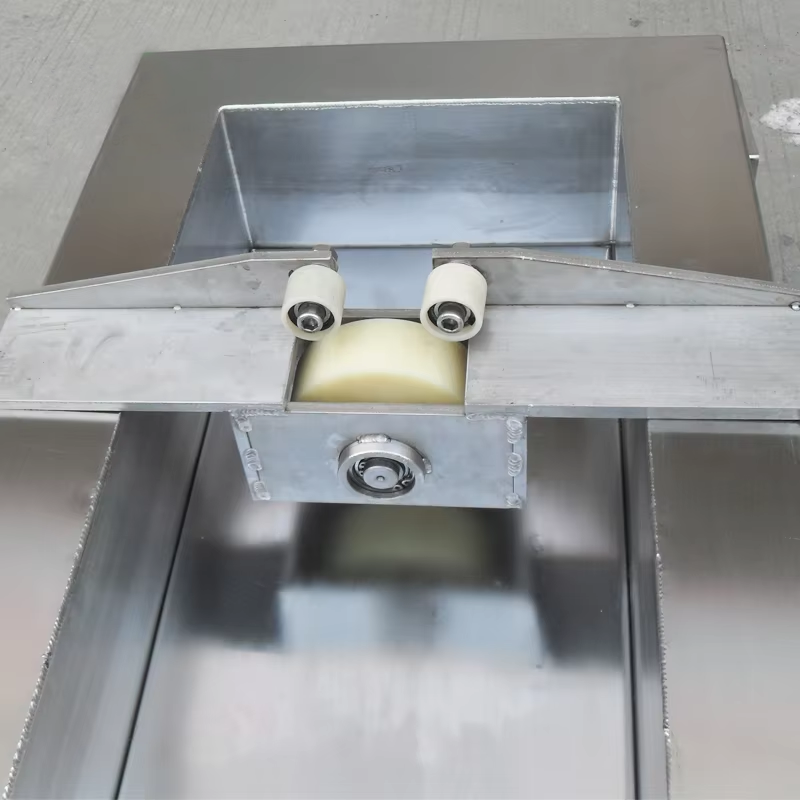

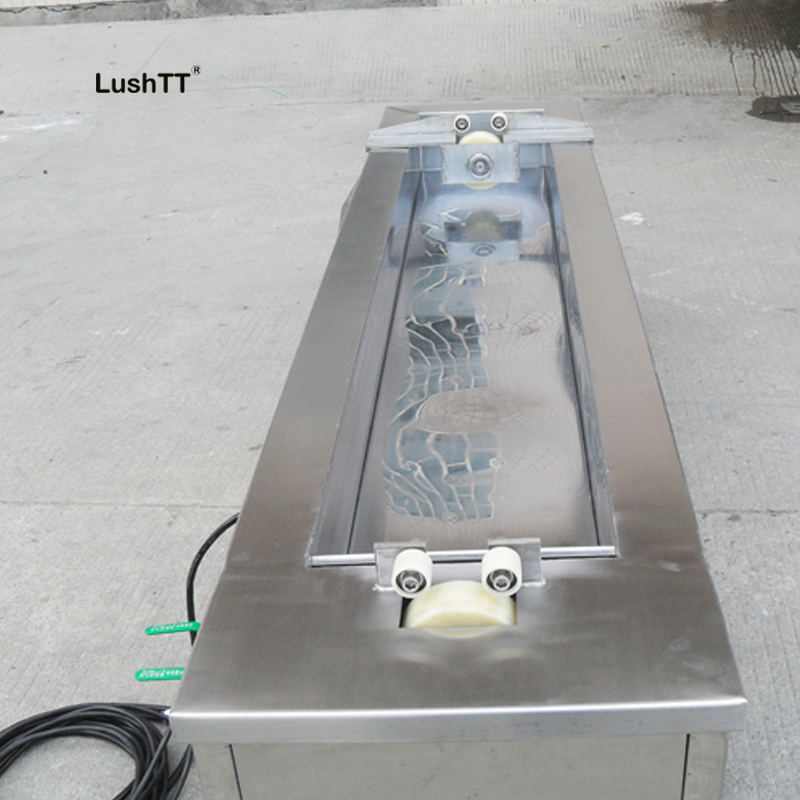

2. Rotating mechanism: the use of horizontal gear motor control rotating power roller, driven roller. Adjustable according to different workpiece lengths.
3. Ultrasonic system: 72pcs of ultrasonic transducers are installed evenly at the bottom of the tank body. Ultrasonic Power 3600W. Frequency: 40KHZ, equipped with a set of independent generator.
4. Manual door cover: manual door cover is configured above the tank body.
5. Mechanical knob control, easy to operate. Heating power is 6KW.
6. Voltage: 220V/380V/415V, 1 phase or 3 phases.
7. Packing: 1 unit / wooden case.
Description

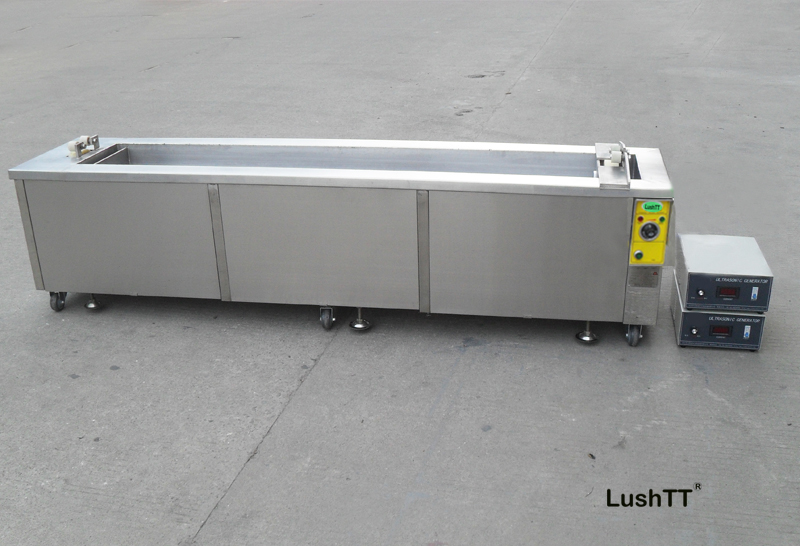

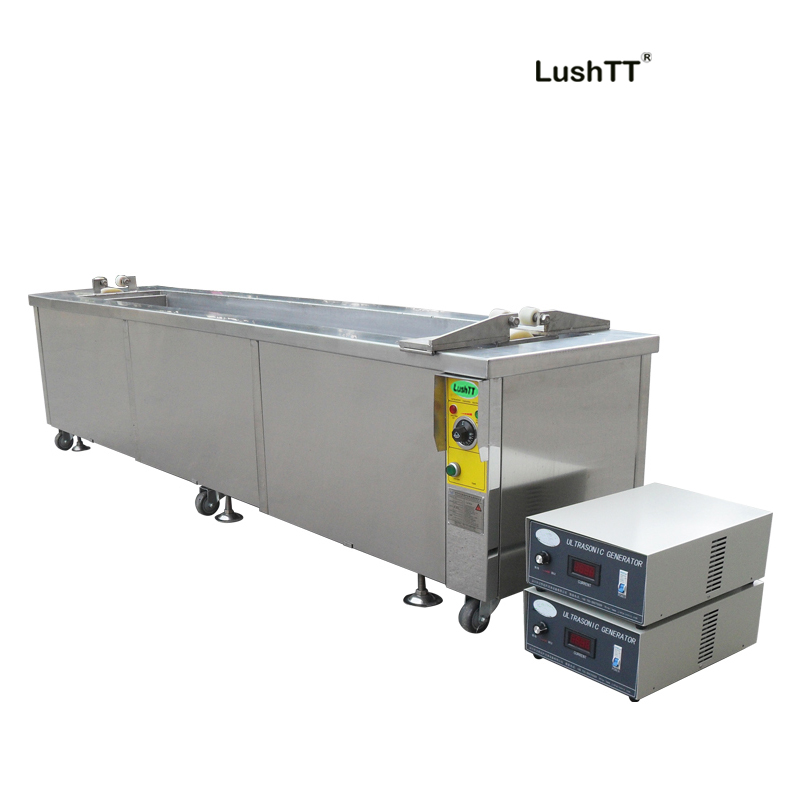

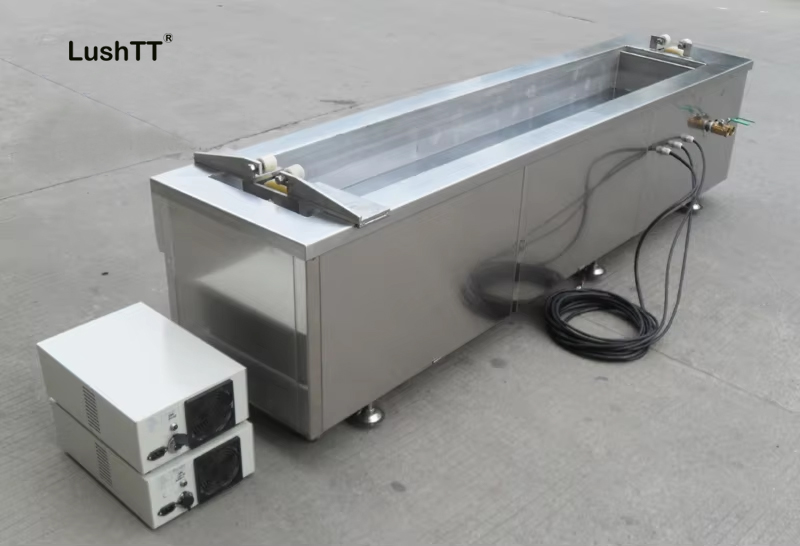

Lush Trees Tech Anilox Roller Ultrasonic Cleaning Machine 118L for Printing Industry
Anilox Roller Ultrasonic Washers provide efficient & effective removal of dirt, dried ink and coatings from anilox rollers. The ultrasonic activity in the tank provides a scrubbing action on the anilox roller to remove the impurities from the surface. The built-in heater provides pre-soak capabilities to soften the hardened deposits. All the cleaning machines have lockable casters easy moving.
Ultrasonic cleaning systems can be used to clean rollers and anilox sleeves, etching plates, cartridge holders, ceramic rollers and other removable printing pieces that accumulate oil, water, alcohol or UV-based ink. The accumulation of dirt causes a progressive deterioration of the drum, which affects the printing quality.

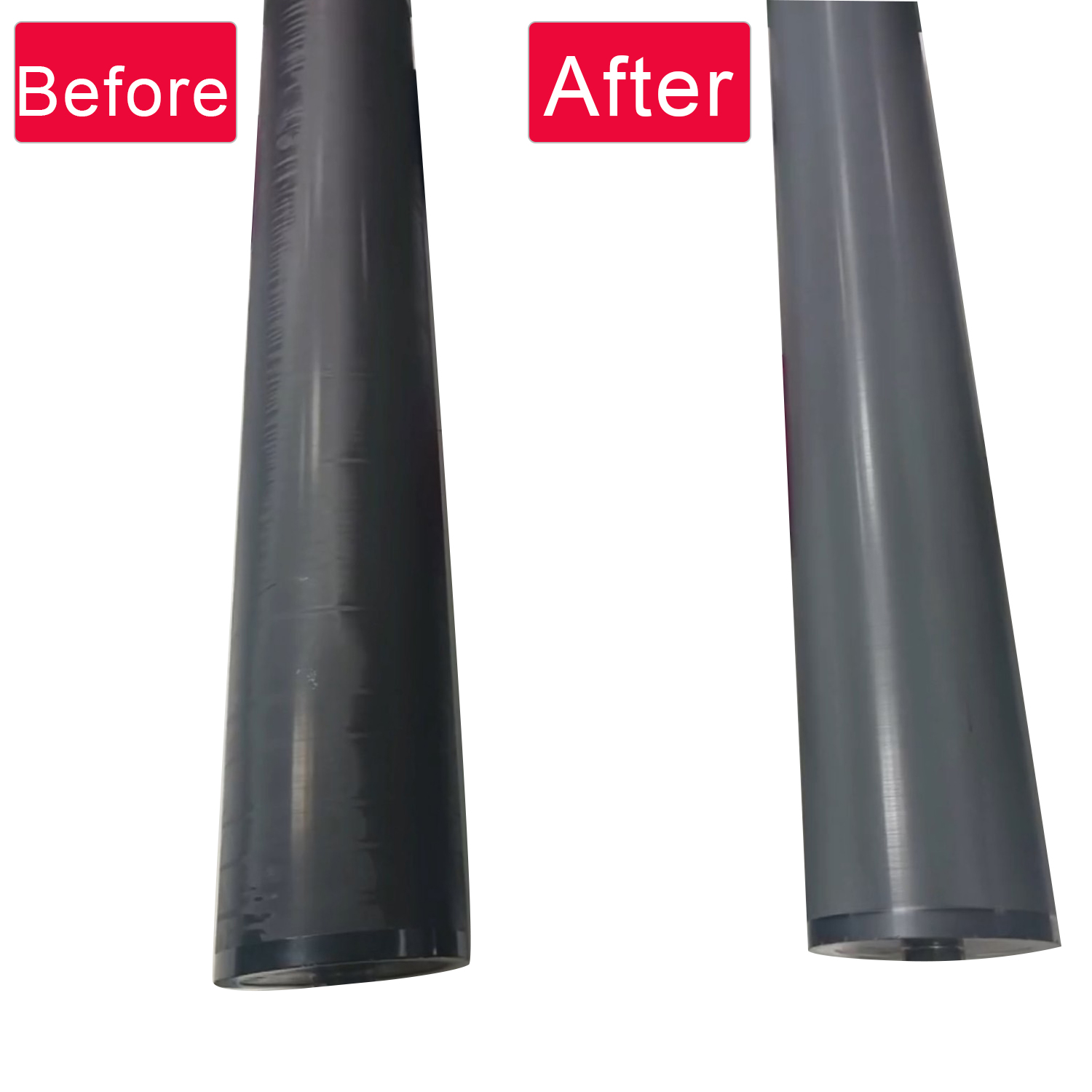

The advantages of ultrasound cleaning are the recovery of the transference level of the cells from the anilox rollers (recovery of the cell volume) and also rotogravure cylinders in all sizes.Therefore, using our machines for your cleaning needs, ensures you obtain a consistent and high printing quality.Custom sizes and options are available to fit your needs.
Please contact us via e-mail joannefu@lushtreestech.com to learn about our full scale capabilities to satisfy your application.
Additional information
| Weight | 170 kg |
|---|---|
| Dimensions | 260 × 65 × 80 cm |
More than a machine in a box.
Production, packing, delivery and long-term project support are part of every Lush Trees Tech order.
Factory production and delivery
Support for different ways of working
Related products
-
Cleaning Equipment Single Bath 560L Cooling Device Industrial Ultrasonic Cleaner
Reference price range$10,000.00 - $13,000.00 View details and quote -
Gas-phase Refrigeration Ultrasonic Cleaning Machine Dual Tank 358L
Reference price range$17,500.00 - $22,000.00 View details and quote -
Ultrasonic Cleaner Dual Tank 540L Cooling Device with Gas Phase Refrigeration System
Reference price range$18,800.00 - $22,800.00 View details and quote -

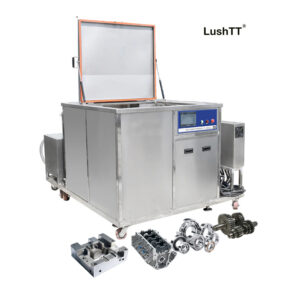

Ultrasonic Cleaner 175L with Lifting and Filtration Power Adjustable LCD Display
