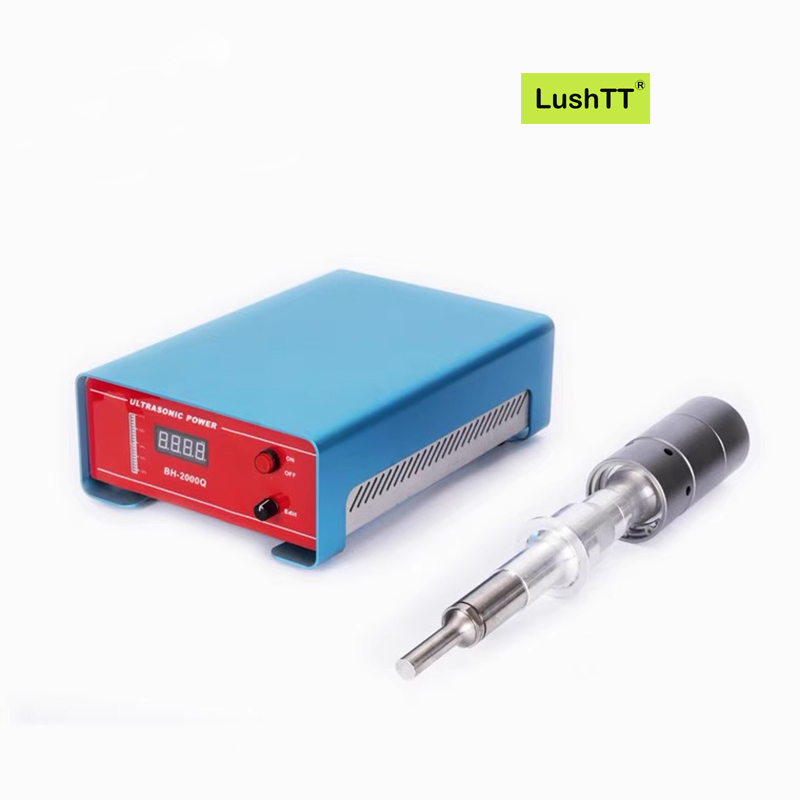

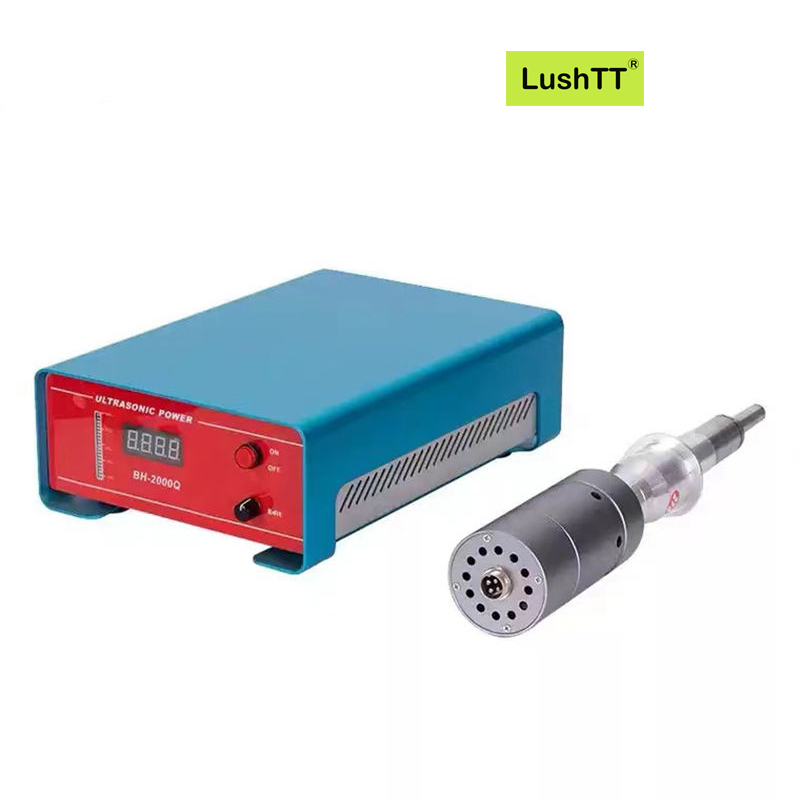

Ultrasonic Probe Cleaning Dispersion Extraction Emulsification 24KHZ 1400W Vibration Rod

Name: Ultrasonic Probe Cleaning Dispersion Extraction Emulsification 24KHZ 1400W Vibration Rod
SKU: LTT-ZB1400
Price: 2400.00 USD
Availability: InStock

Reference price range$2,400.00 - $2,600.00

Built to specification

Request a project quote

Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.

Tank capacityFrequencyPowerVoltageAutomationCustom options

Send requirements WhatsApp Email this product

SKU: LTT-ZB1400 Category: Immersed Ultrasonic Transducers

Product overview

Specifications and product details

The complete original product information is kept below for technical review.

1. Power Supply: 85-260V / 50-60Hz, Ultrasonic Power: 20-1400W adjustable.
2. Ultrasonic Frequency: 24Khz (19-26khz automatic tracking), or customize.
3. Timer: 1S-99H adjustable.
4. Pulse Generator: On/off button, 1S-60 minutes adjustable.
5. Operation Mode: Pulse, Time, Continous.
6. LED Display: Colorful touch screen, resolution ratio 400*240.
7. Parameters on LED Display: Output ultrasonic power, working mode, program setting key, on / off, ultrasonic frequency, user group, operating status of equipment, details about device running parameters.
8. Running Interface Can be Reviewed on LED Display: Total running time, working time, stop time, user group, overload temperature, power output ratio, working mode, program save key.
9. Operation Language: English.
10. Rod Diameter: 62.5mm, Rod Length: 205mm, Rod Material: Titanium alloy.
11. Power Cable Length: 150cm.

Description
Additional information

Description

Lush Trees Tech Ultrasonic Probe Cleaning Dispersion Extraction Emulsification 24KHZ 1400W Vibration Rod

Applications:
1. Industrial cleaning, it can clean all kinds of parts with complicated shapes, such as automobile parts, mechanical hardware parts, etc. It can effectively remove oil, rust, debris and other dirt.

2. Chemical industry, it is used for mixing, emulsifying and dispersing. Like in the production process of paint and ink, it helps to mix various ingredients evenly; in emulsion preparation, it makes the oil phase and water phase fully emulsified.

3. Water treatment, it can be used to prevent the scaling phenomenon in water, through the cavitation effect of ultrasonic waves, interfering with the formation and adhesion of scale, and can also assist in the treatment of some impurities in sewage.

4. Food processing industry, it is used to clean fruits, vegetables and other ingredients, which can remove pesticide residues, soil and other pollutants on the surface, while not causing damage to the ingredients themselves.
