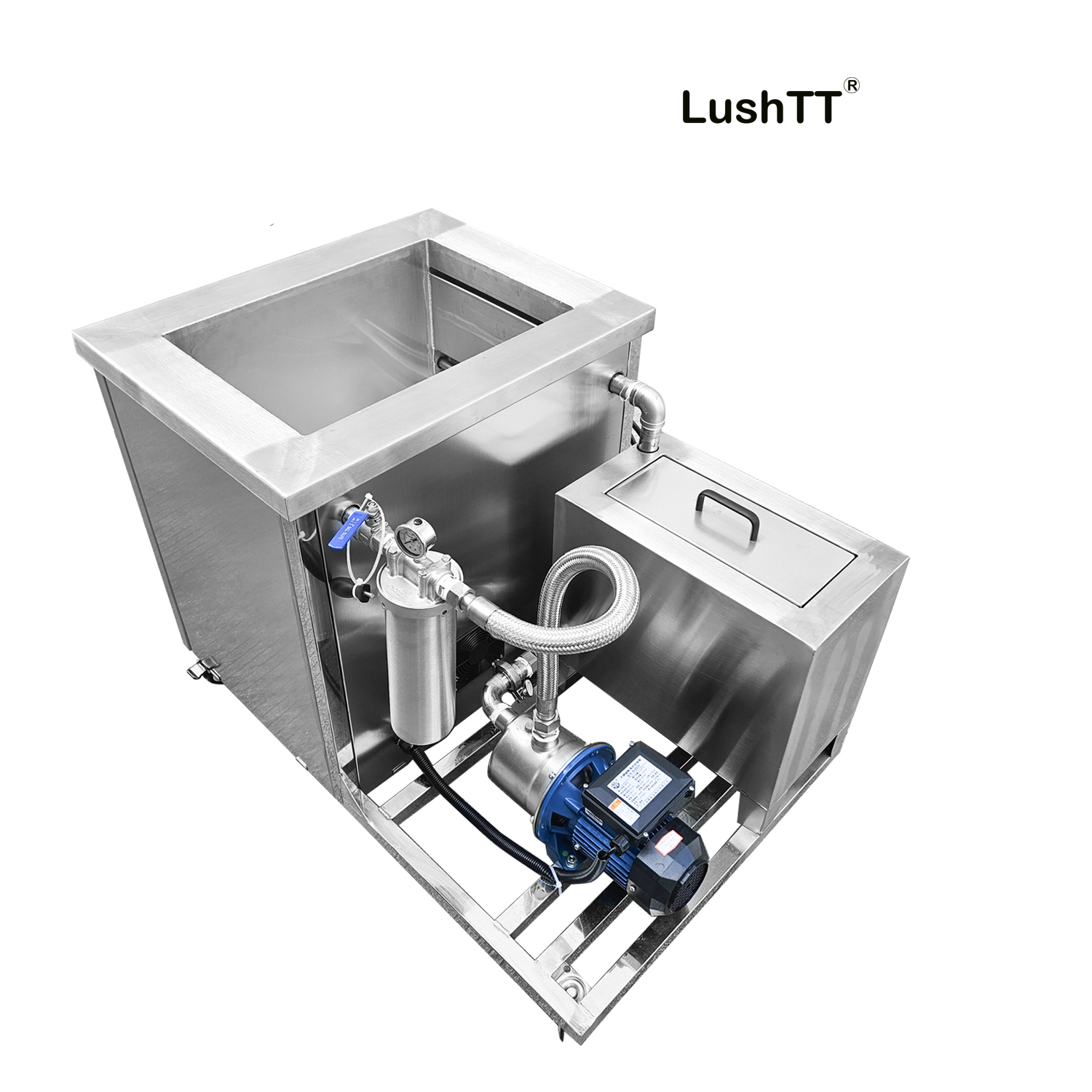

Parts Cleaning Machine Ultrasonic Bath 135L with Filter Heater Timer

Name: Parts Cleaning Machine Ultrasonic Bath 135L with Filter Heater Timer
SKU: LTT-1036G(135L)
Price: 2000.00 USD
Availability: InStock

Reference price range$2,000.00 - $2,600.00

Built to specification

Request a project quote

Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.

Tank capacityFrequencyPowerVoltageAutomationCustom options

Send requirements WhatsApp Email this product

SKU: LTT-1036G(135L) Category: Industrial Ultrasonic Cleaners

Product overview

Specifications and product details

The complete original product information is kept below for technical review.

1. Model: LTT-1036G(135L)
2. Tank capacity: 135L. Tank size: 600*500*450mm. Tank material: SUS304 Or SUS316. Machine size: 855*1170*880mm. Packaging size: 1055*1270x1080mm. Can customize 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 264L / 360L / 650L / 560L / 960L / 1024L.
3. Ultrasonic power: 0-1800W （input power 2160W, max. output power 1800W) adjustable. Transducer quantity: 36pcs. Heating power: 4.5KW. Timer: 1-99h adjustable. Heater: 0-95c adjustable.
4. Frequency: 28khz or 40khz, can customize 68khz / 80khz / 120khz.
5. Control: seperate generators, easy to operate.
6. Optional: pneumatic lift, rinsing tank, etc.
7. Function: industrial ultrasonic cleaning with filtration and circulation system.
8. Voltage: 220V/380V/415V, 1 phase or 3 phases.
9. Packing: 1 unit / wooden case.

Description
Additional information

Description

Lush Trees Tech Parts Cleaning Machine Ultrasonic Bath 135L with Filter Heater Timer

1. Inner tank size: It can be customized according to customer’s product size & cleaning quantity.

2. Ultrasonic power: It can be customized according to the cleaning tank capacity.The larger the capacity, the more ultrasonic power is needed.

3. Ultrasonic frequency: 20khz / 25khz / 28khz / 35khz / 40khz / 60khz / 68khz / 80khz / 168khz / 200kHz can be optional. 28khz and 40kHz is the most commonly used.

4. Ultrasonic generator: There are split-type and integrated type can be optional.

5. Ultrasonic direction: Bottom shock and side shock. Bottom shock is the most commonly used. Transducers can be installed at the bottom and side if the product is bigger and structure is more complex.

6. Inner tank material: Stainless Steel SUS304/SUS316, the most commonly used is SUS304, we kindly recommended to use the stronger acid alkali SUS316 if the cleaning agent you will be used is strong acid or strong base.

7. Outer plate material: The material has drawing plate and mirror plate optional. The first one is commonly used.

8. Stick Brand: We can stick the customer brand according to the authorization of the customer. The default is LUSHTT Brand.

9. Function customized: Full-Automatic Equipment, Through-Type equipment, Filtration circulation system, High-pressure spraying, Bubbling, Drying,Lifting, Throwing, Cooling, Slow pulling and other functions.
