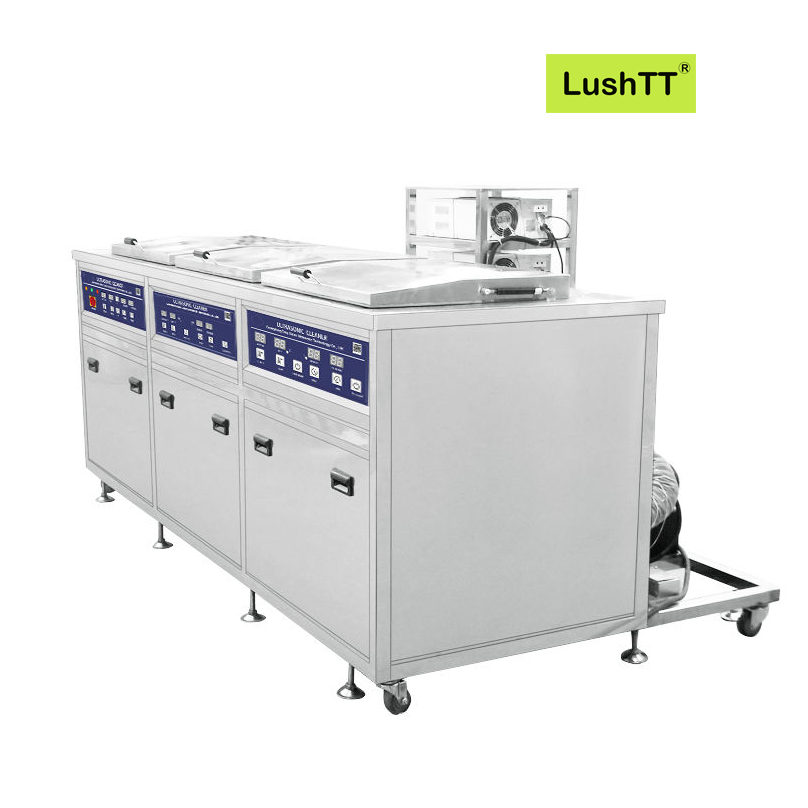

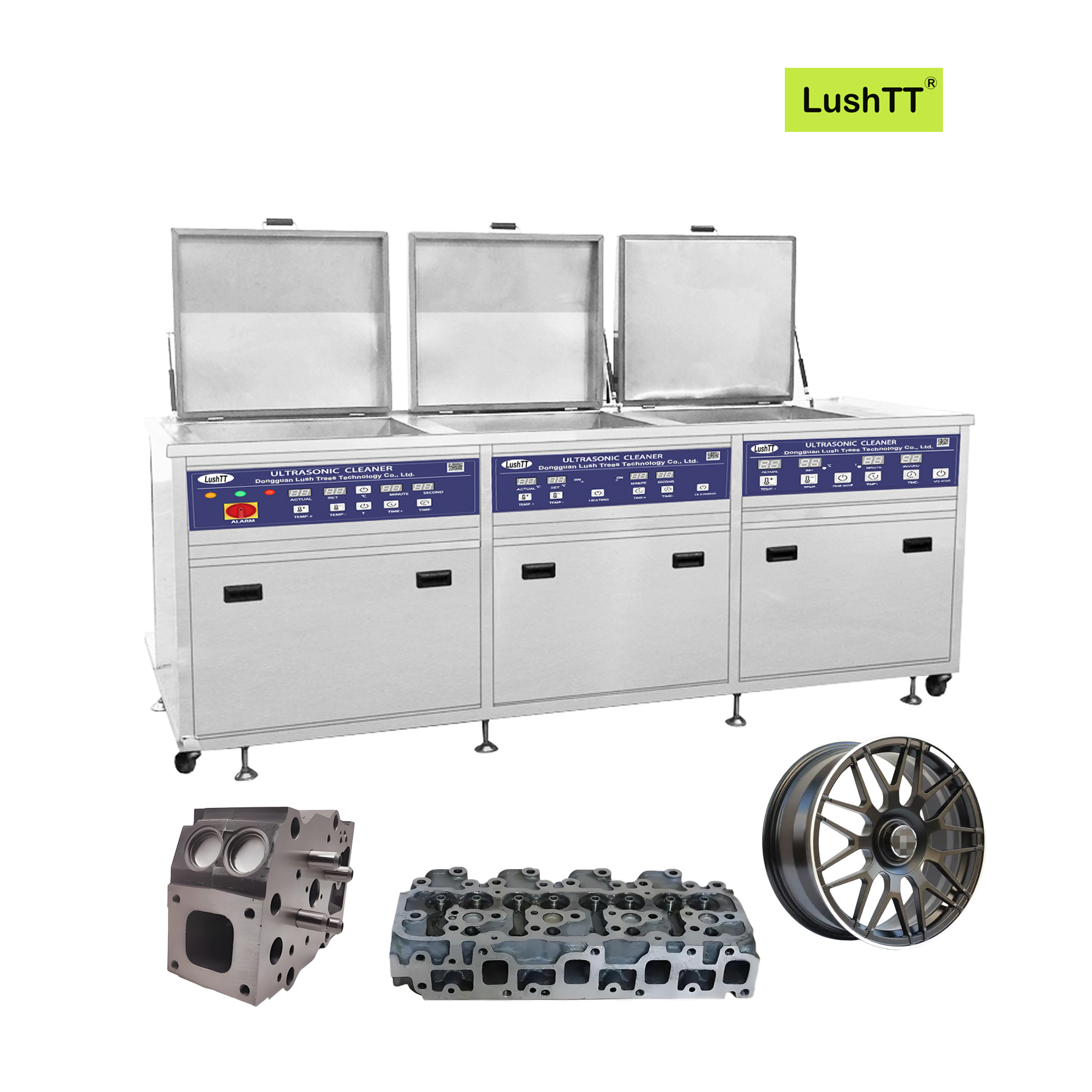

Industrial Ultrasonic Cleaner 135L Three Chambers Oil Rust Flux Cleaning Machine

Name: Industrial Ultrasonic Cleaner 135L Three Chambers Oil Rust Flux Cleaning Machine
SKU: LTT-3072FRD(135L)
Price: 4950.00 USD
Availability: InStock

Reference price range$4,950.00 - $5,050.00

Built to specification

Request a project quote

Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.

Tank capacityFrequencyPowerVoltageAutomationCustom options

Send requirements WhatsApp Email this product

SKU: LTT-3072FRD(135L) Category: Industrial Ultrasonic Cleaners

Product overview

Specifications and product details

The complete original product information is kept below for technical review.

1. Model: LTT-3072FRD

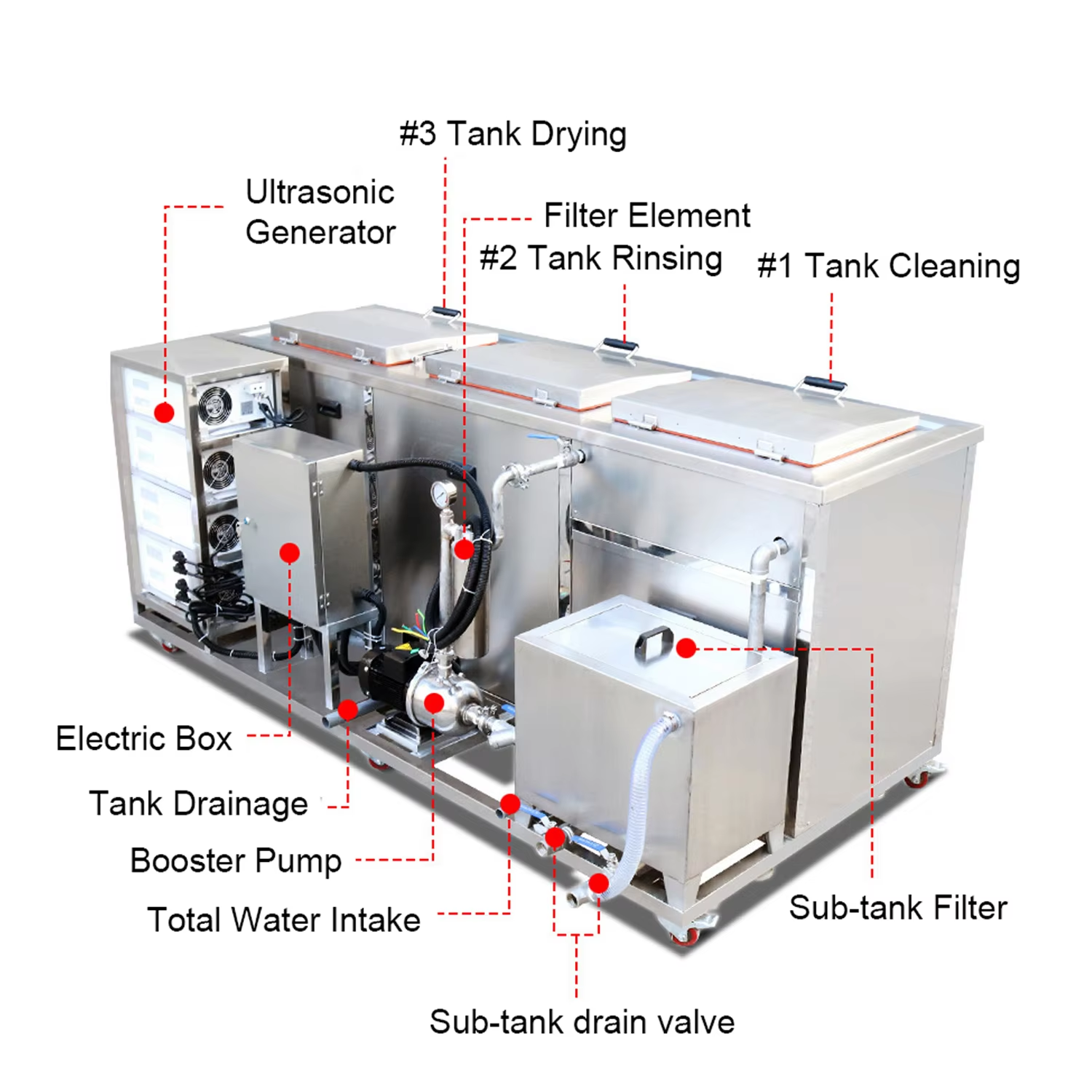

2. Tank function: 1st tank ultrasonic cleaning+heating+filtration with circulation sub-tank, 2nd tank ultrasonic rinsing+heating, 3rd tank hot air circulation drying.
3. Tank Capacity: 135L+135L+135L, ultrasonic Power of each 1st and 2nd tank: 0~2160W Adjustable. Frequency: 28khz or 40khz, can customize 68khz/80khz/120khz.
4. Can customize any size as per users’ actual needs. Such as 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 235L / 264L / 360L / 540L / 560L / 960L / 1024L.
5. Heating Power: 4.5KW for each tank, Temperature: RT~95°C for 1st and 2nd tank, RT~100°C or RT~150°C for the 3rd tank.
6. Inner Tank Size: 600*500*450mm(L*W*H). Basket Size: 550*450*410mm(L*W*H). Unit Size: 2250x1000x700mm(L*W*H). Packaging Size: 2350*1270*960mm(L*W*H).
7. Gross Weight: 360kgs±10%
8. Inner Tank Material: SUS304 or SUS316L, can customize as per your actual needs.

Description
Additional information

Description

Lush Trees Tech Industrial Ultrasonic Cleaner 135L Three Chambers Oil Rust Flux Cleaning Machine

1. Automatic frequency tracking generator drive, modular design of the whole machine, easy to operate, convenient to maintain.
2. Digital controlled dispaly, one-button to start cleaning, can quickly remove the contaminants from the work pieces in several minutes.
3. Heating temperature is adjustable, 20-100% ultrasonic power is adjustable, cleaning time can be adjusted in minutes and hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong.

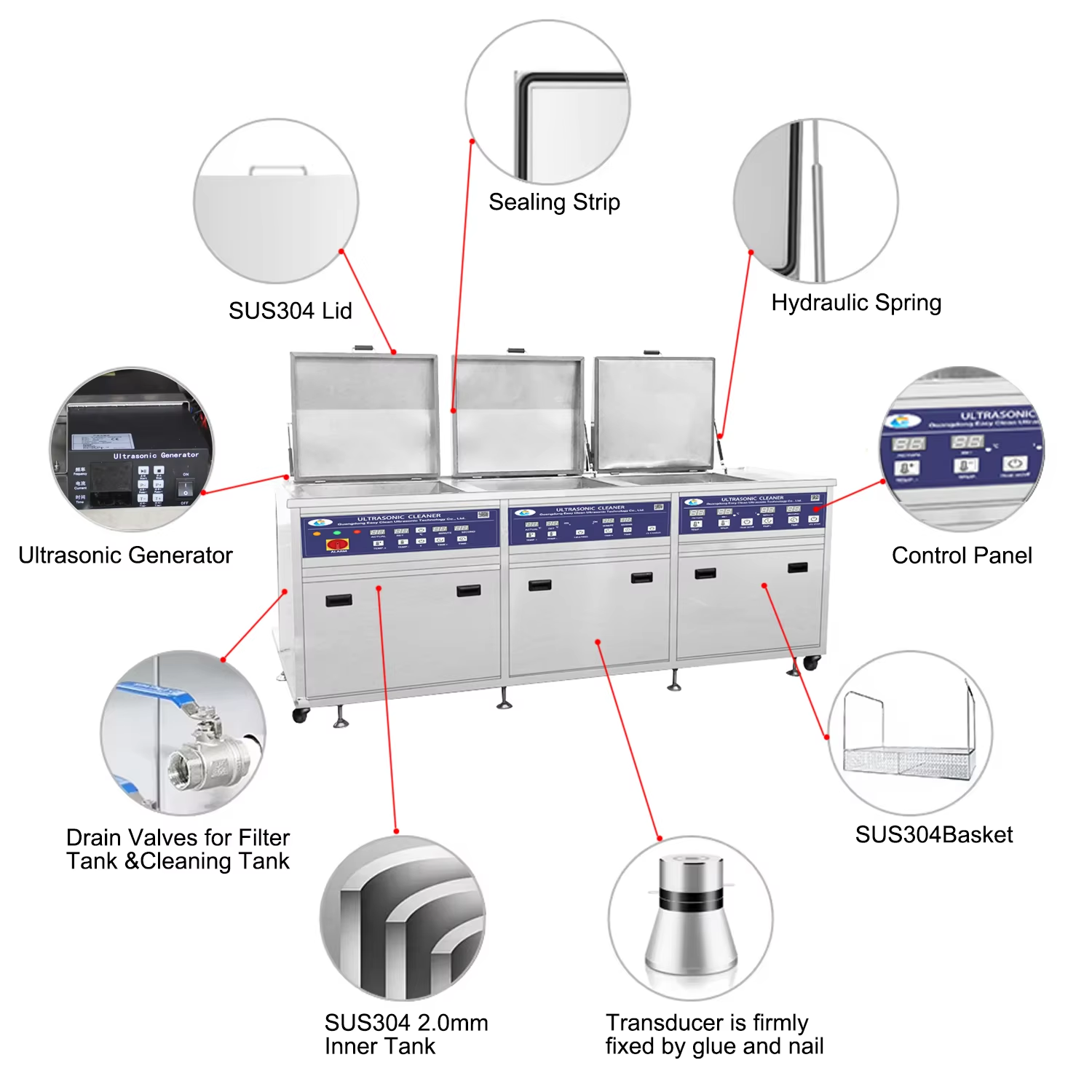

4. Ultrasonic transducers, high strength glue bonding, have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 or SUS316L 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment.
5. Pass 2500V high voltage test, strict production process and aging process, have mute cover/ 304 or 316L stainless steel washing basket, etc. And certificated by CE/ROHS/FCC.

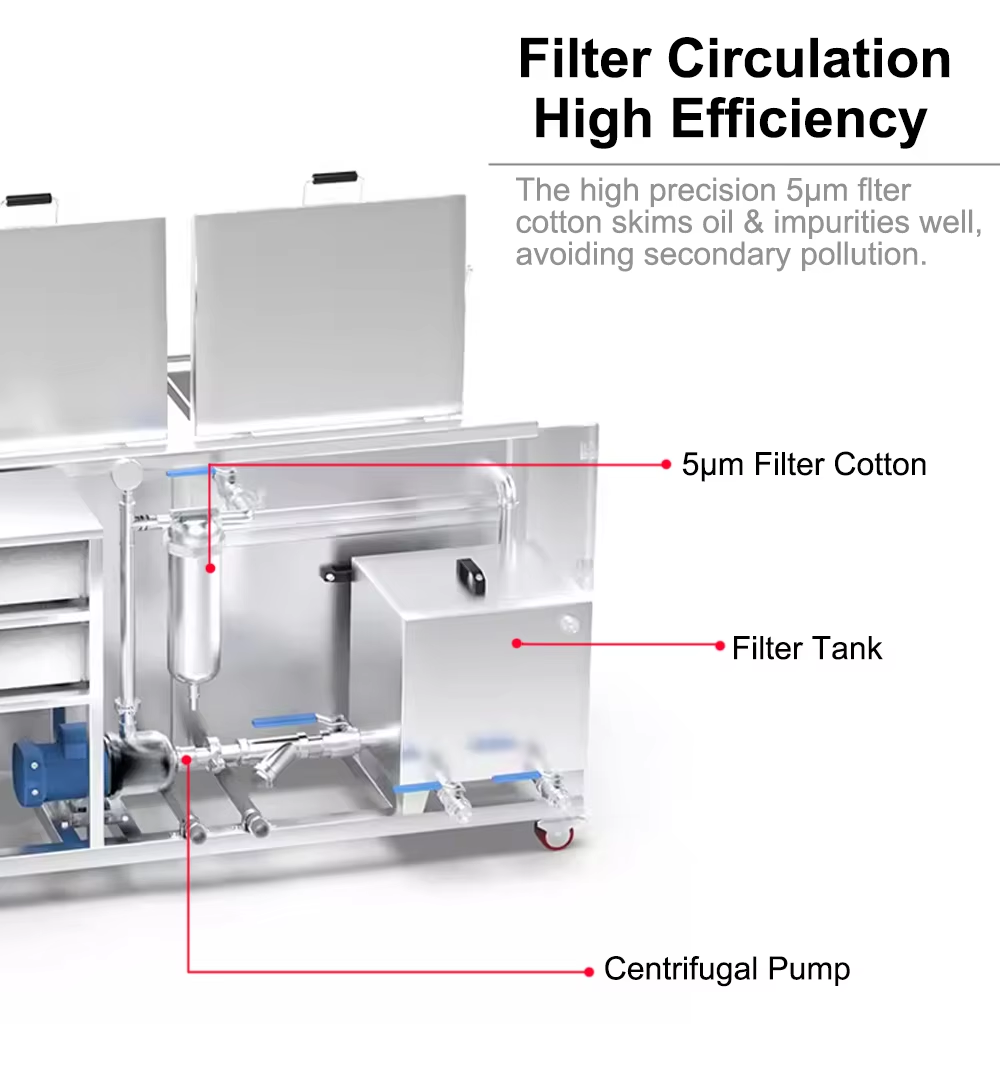

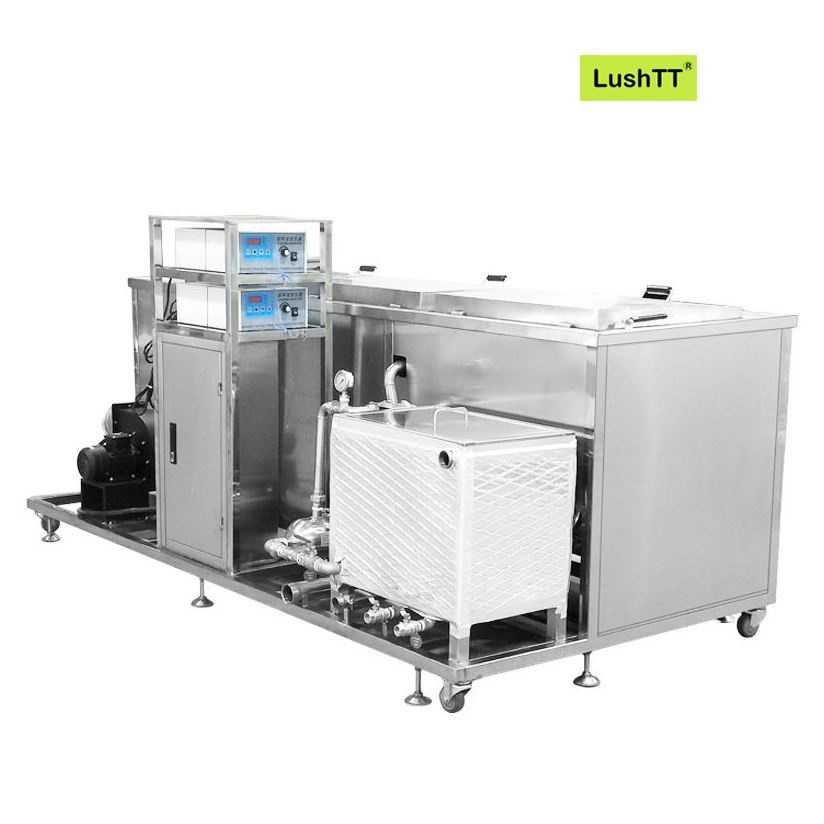

6. Equipped with flitration and circulation device, improve the cleaning effect, saves cleaning liquid and environmental friendly. Automatic basket lifting system can be added too.
