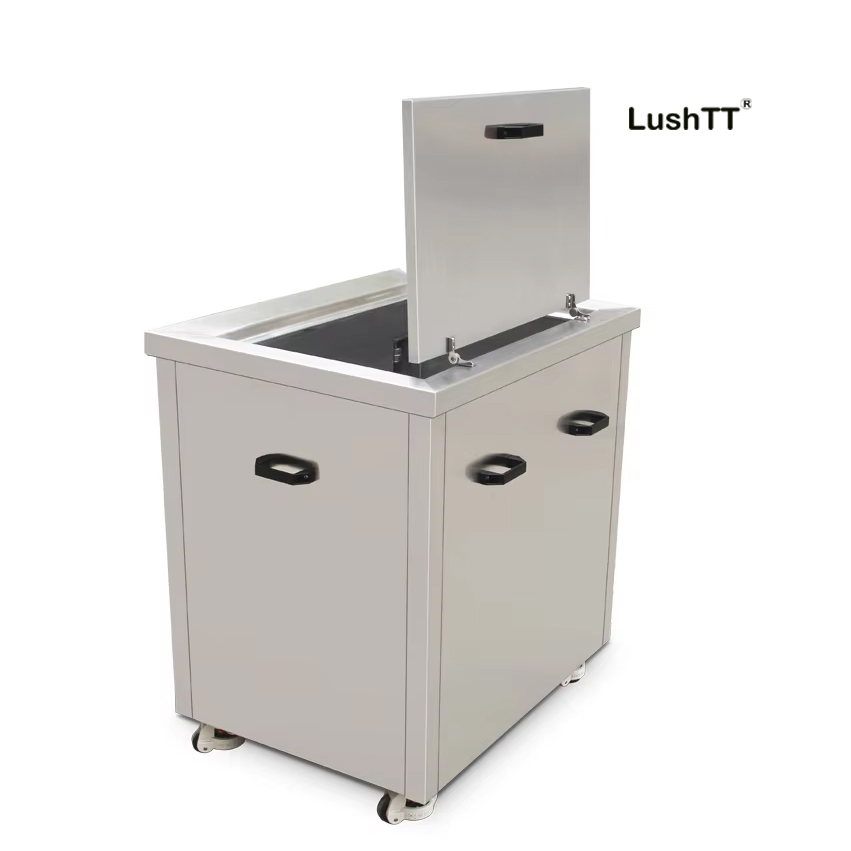

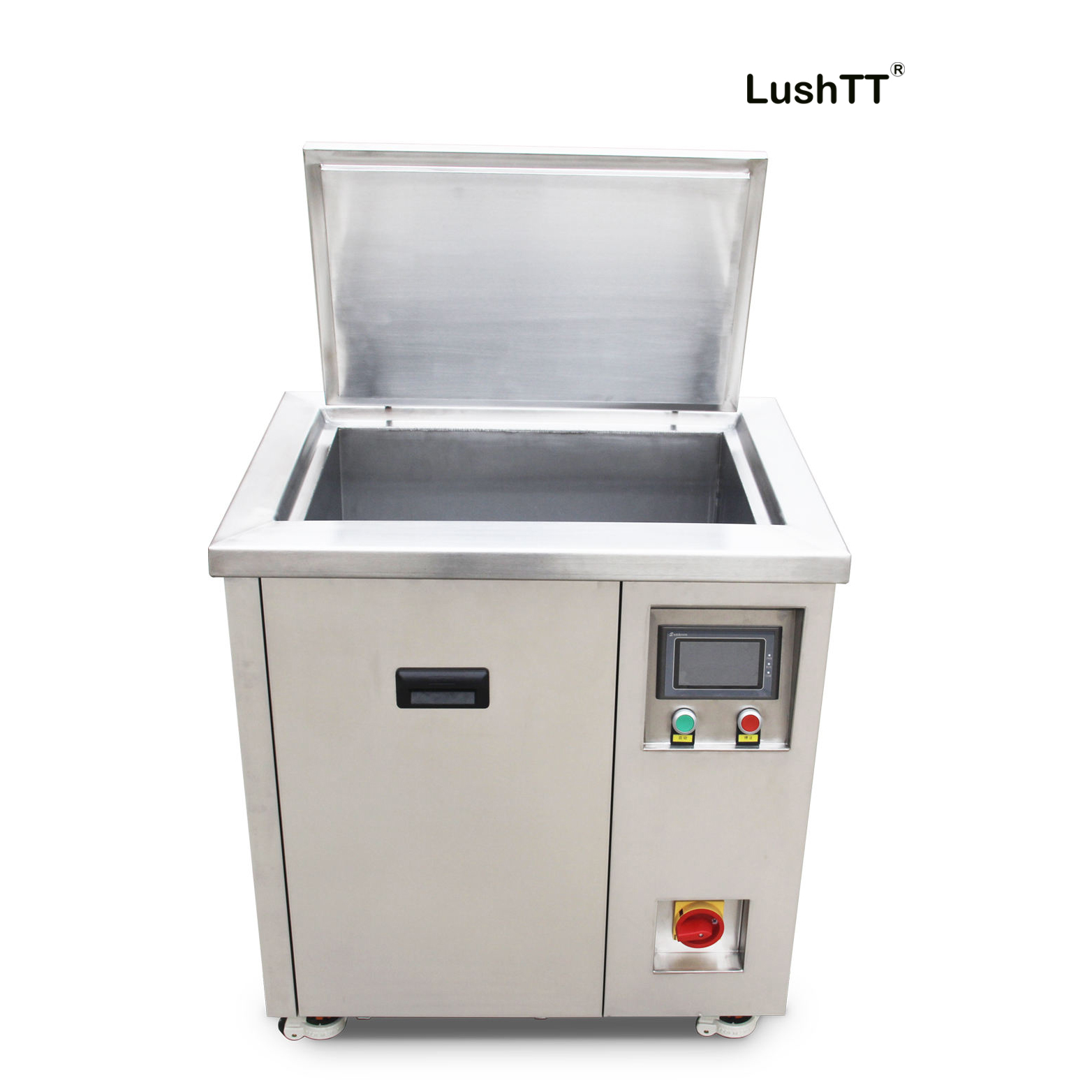

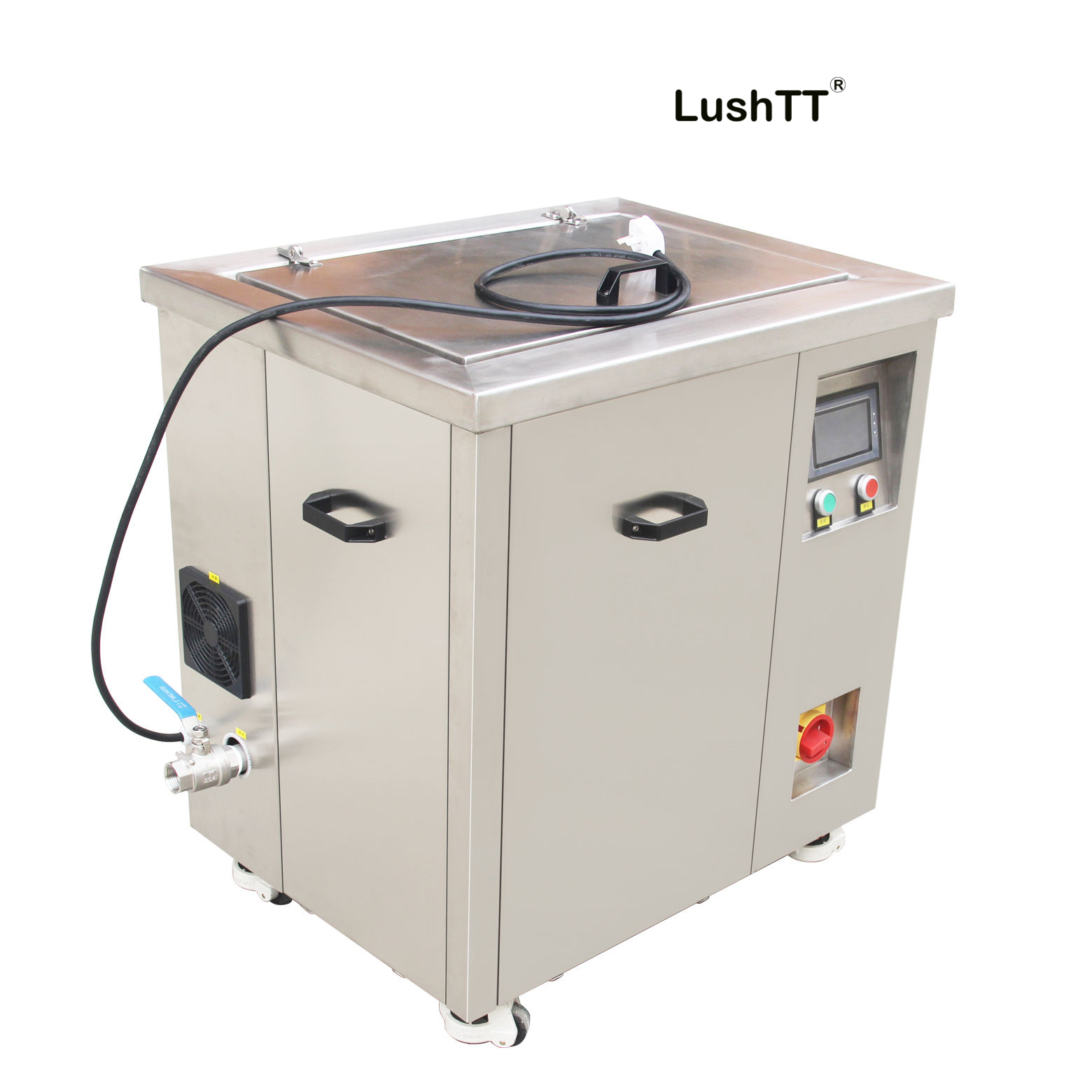

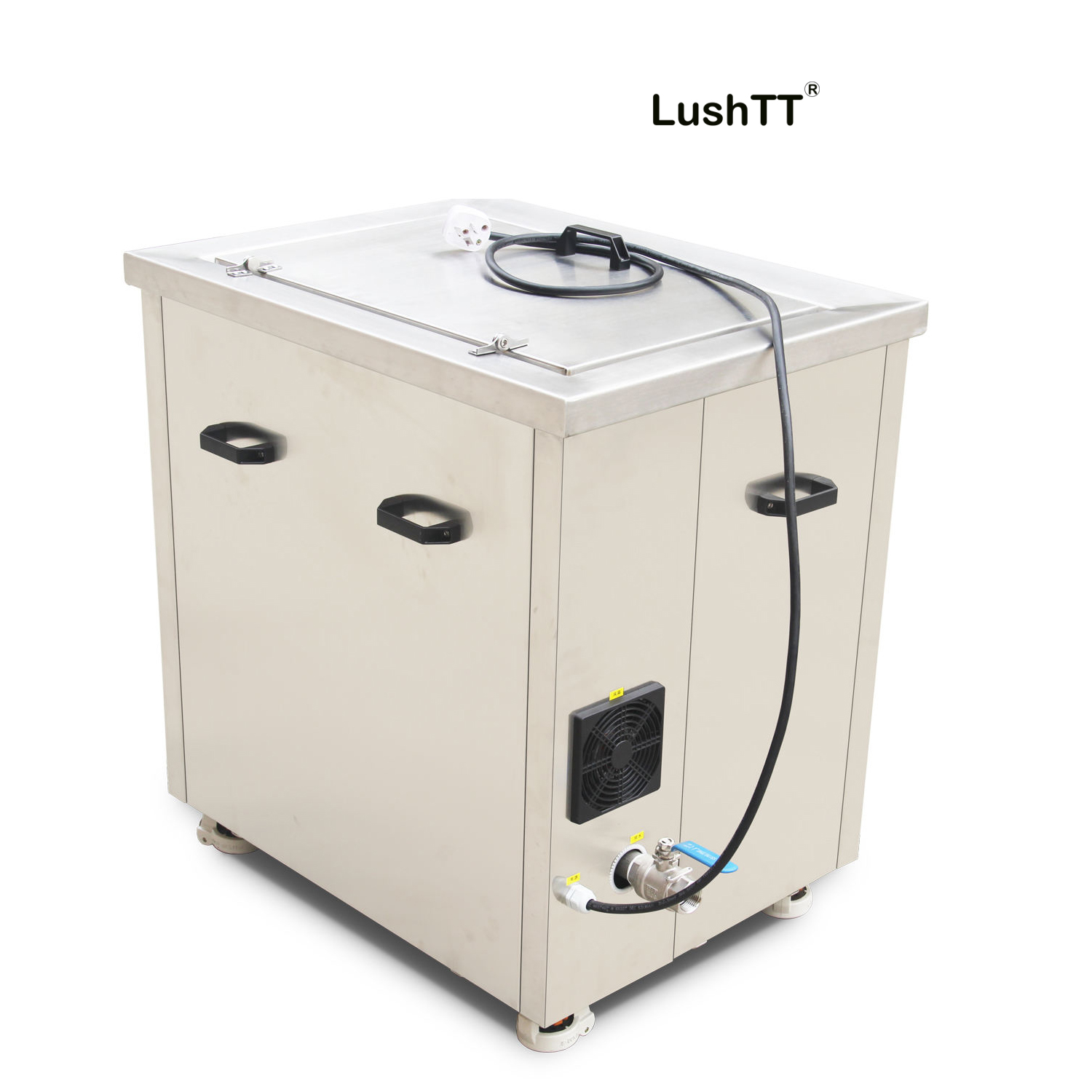

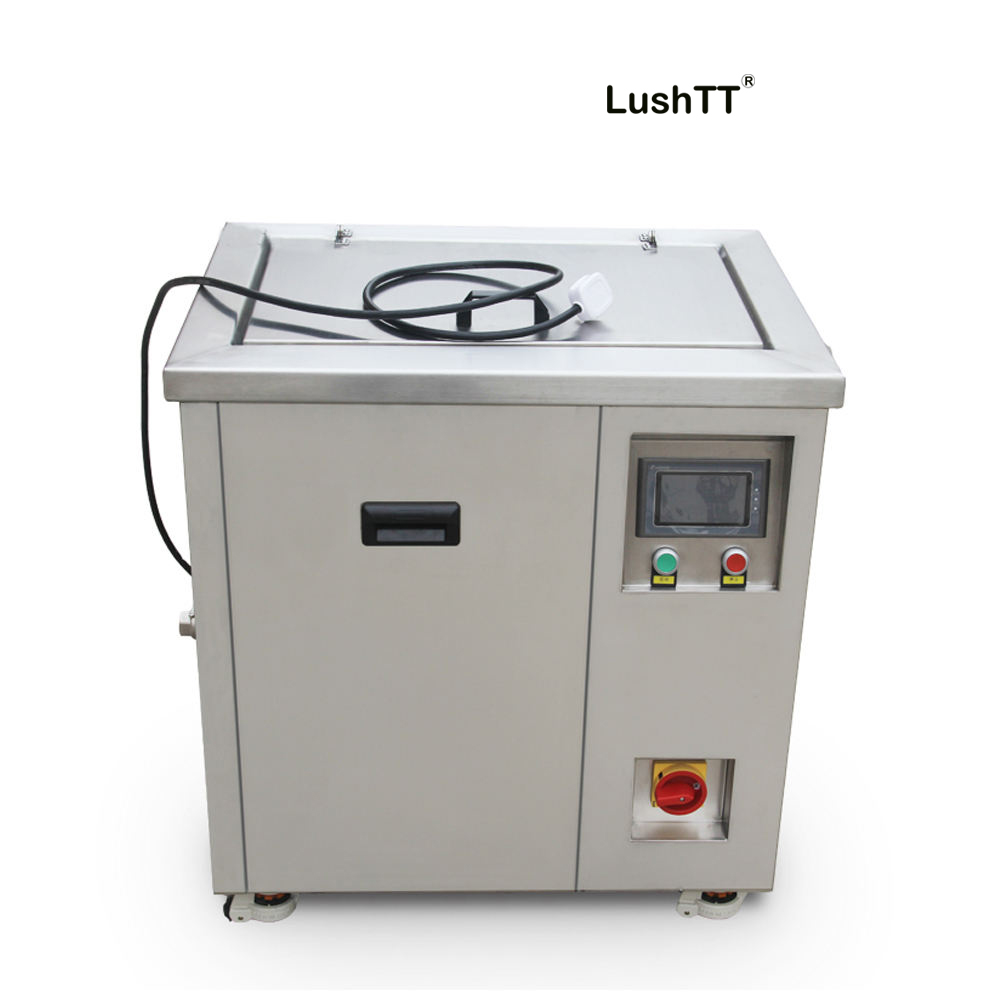

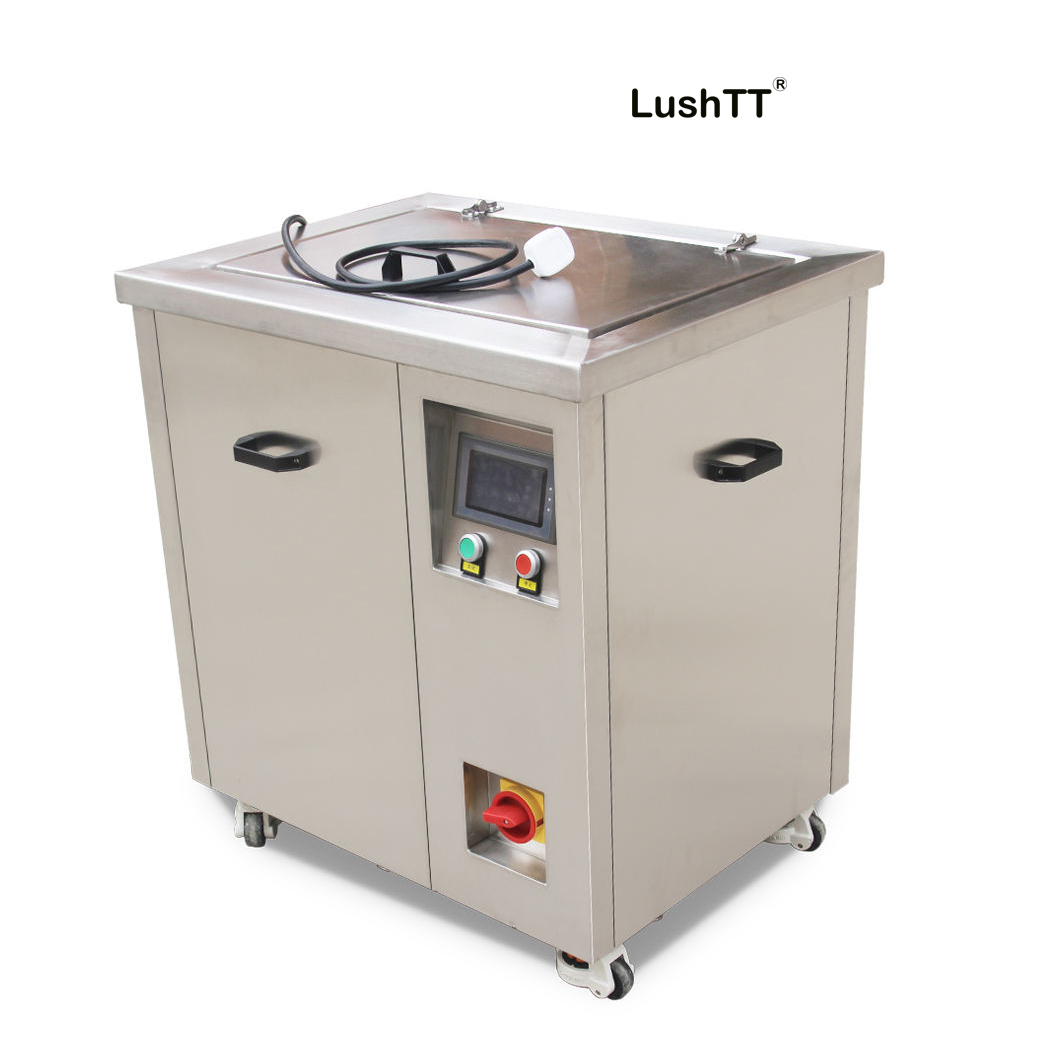

Ultrasonic Cleaning Machine PLC Control Two Frequency 28khz 40khz 105L Bath
Reference price range$2,000.00 - $2,700.00
Request a project quote
Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.
Specifications and product details
The complete original product information is kept below for technical review.
1. Model: LTT-1030AD(105L)

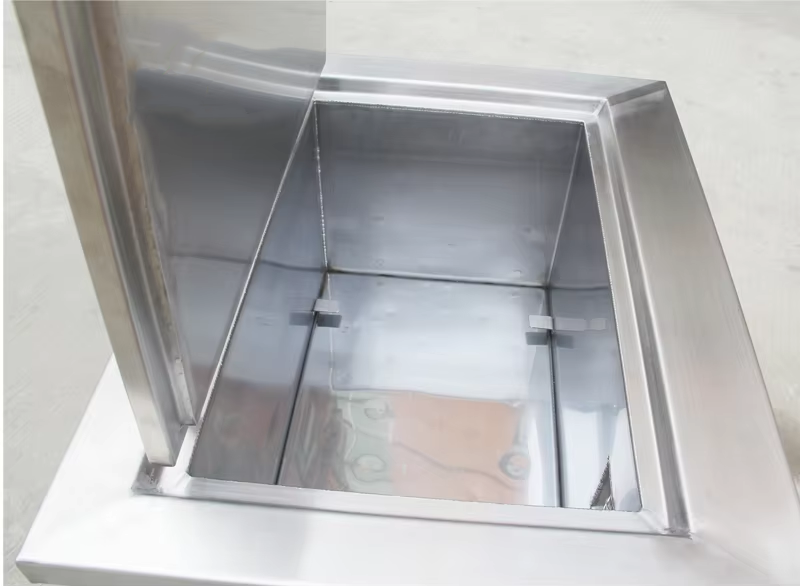

2. Tank capacity: 105L. Tank size: 600*500*350mm. Tank material: SUS304 Or SUS316. Machine size: 780*710*850mm. Packaging size: 980x850x1050mm. Can customize 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 264L / 360L / 650L / 560L / 960L / 1024L.
3. Ultrasonic power: 0-1500W （input power 1800W, max. output power 1500W) adjustable. Transducer quantity: 30pcs, 15pcs of 28khz and 15pcs of 40khz. Heating power: 4.5KW. Timer: 1-99h adjustable. Heater: 0-95c adjustable.
4. Frequency: 28khz and 40khz, can customize with 68khz / 80khz / 120khz.
5. Control: Built-in generator, save space.
6. Optional: Oil filter system, pneumatic lift, rinsing tank, etc.
7. Voltage: 220V/380V/415V, 1 phase or 3 phases.
8. Packing: 1 unit / wooden case
Description
Lush Trees Tech Ultrasonic Cleaning Machine PLC Control Two Frequency 28khz 40khz 105L Bath
While ultrasonic cleaning is highly effective, there are some considerations and limitations to keep in mind:
1). Material Compatibility: Certain materials may be sensitive to ultrasonic cleaning, such as soft plastics, porous materials, or items with loose components. It’s important to ensure that the object being cleaned is compatible with the ultrasonic process.
2). Size and Shape: The size and shape of the objects being cleaned should be taken into account when selecting an appropriate ultrasonic cleaner. Objects should fit comfortably within the cleaning tank without overcrowding, allowing the sound waves to reach all surfaces.
3). Precautions: Safety precautions should be followed, including the use of appropriate personal protective equipment (PPE) and ensuring proper ventilation when working with cleaning agents.
Additional information
| Weight | 90 kg |
|---|---|
| Dimensions | 98 × 85 × 105 cm |
