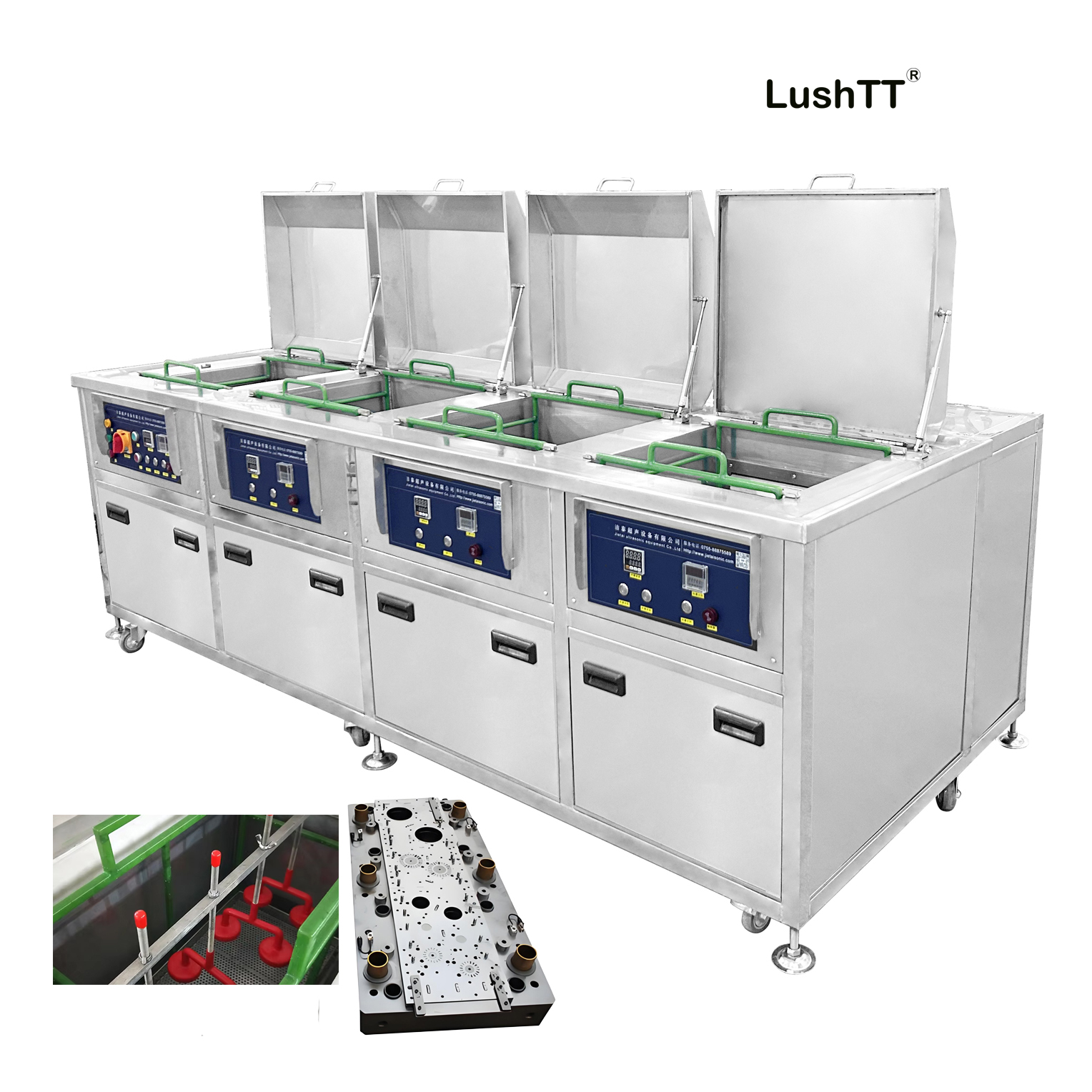

Electrolytic Mold Ultrasonic Cleaning Machine 320L Four Baths for Die Casting Moulds

Name: Electrolytic Mold Ultrasonic Cleaning Machine 320L Four Baths for Die Casting Moulds
SKU: LTT-4060EP(320L)
Price: 12900.00 USD
Availability: InStock

Reference price range$12,900.00 - $16,900.00

Built to specification

Request a project quote

Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.

Tank capacityFrequencyPowerVoltageAutomationCustom options

Send requirements WhatsApp Email this product

SKU: LTT-4060EP(320L) Category: Special Ultrasonic Cleaners

Product overview

Specifications and product details

The complete original product information is kept below for technical review.

1. Working time: continuous ultrasonic emits mode.
2. Transducers: Using Ilsan piezoelectric ceramic chip of Korea, it can work for long time under different temperature; imported bonding technology, ensure the transducer can work for a long time without falling off.
3. Ultrasonic generator: adopt international leading technology, adopt IGBT module, SCM technology, stable working condition, bigger and stronger output power, have over-voltage, over-current, output short circuit and other protective measures.
4. Each inner tank size is 1000*800*400mm and tank capacity is 320L. Overall machine size is 4600*1050*800mm. Tank material is stainless steel SUS316L in 2.0mm, other main materials are SUS304.
5. Ultrasonic power for each tank is 0-3000W (max. input power is 3600W, max. output power is 3000W) adjustable, transducer quantity is 60pcs each tank, total is 240pcs. Ultrasonic frequency is 40khz.
6. Heating power is 3000W for each tank from room temperature to highest 95℃ adjustable. Timer is 1-99 hours adjustable.
7. With built-in generator, castor wheels with brake.
8. With electrolysis unit, 100A rectifier unit.
9. Mold type: injection mold, instrument precision mold, connector mold, precision seal mold, stamping mold, molding mold, etc.
10. Can remove mold gas residue layer, high temperature formed sulfide, fire plastic residue, toner residue, mold surface oxide, as well as a variety of mold rust stains, oil stains, etc.
11. Voltage: 380V or 415V, 3 phases.
12. Packing: 1 unit / wooden case.

Description
Additional information

Description

Lush Trees Tech Electrolytic Mold Ultrasonic Cleaning Machine 320L Four Baths for Die Casting Moulds

The technical principle of the electrolytic mold ultrasonic cleaning machine combines the characteristics of electrolytic cleaning and ultrasonic cleaning to achieve a thorough cleaning process for the mold. Specifically, its technical principles include:

1. Electrolytic cleaning: Electrolytic cleaning utilizes the chemical reaction of an electrolyte under the influence of an electric field to dissolve, decompose, and remove dirt and oxides on the surface of the mold. In the electrolytic mold ultrasonic cleaning machine, the electrolytic process is typically used to accelerate the cleaning effect on the mold surface, especially for some difficult-to-clean dirt, where electrolytic cleaning can be very effective.

2. Ultrasonic cleaning: Ultrasonic cleaning utilizes the cavitation and impact effects of micro-bubbles produced by ultrasonic vibrations in the cleaning solution to peel off and expel dirt and residues adhering to the surface of the mold. Through the action of ultrasound, the cleaning solution and cleaning effect can be better transmitted to the fine pores and irregularities of the mold surface, thereby achieving a more thorough cleaning effect.

3. Combined action: Electrolytic and ultrasonic technologies in the electrolytic mold ultrasonic cleaning machine work together.Electrolytic cleaning can accelerate the cleaning process and dissolve difficult-to-clean dirt, while ultrasonic cleaning can thoroughly remove dirt from the mold surface. The combined action of both can achieve efficient and thorough mold cleaning.
