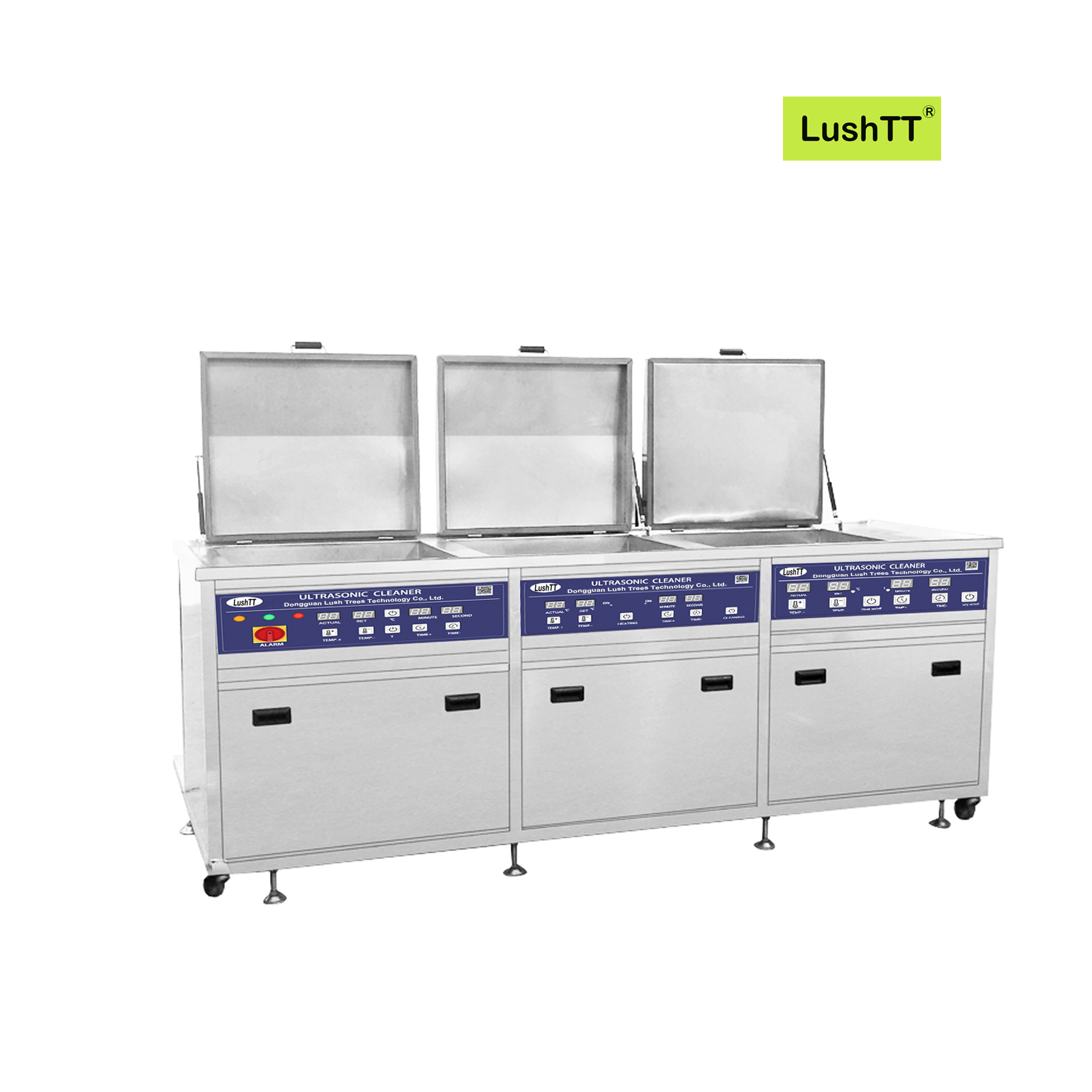

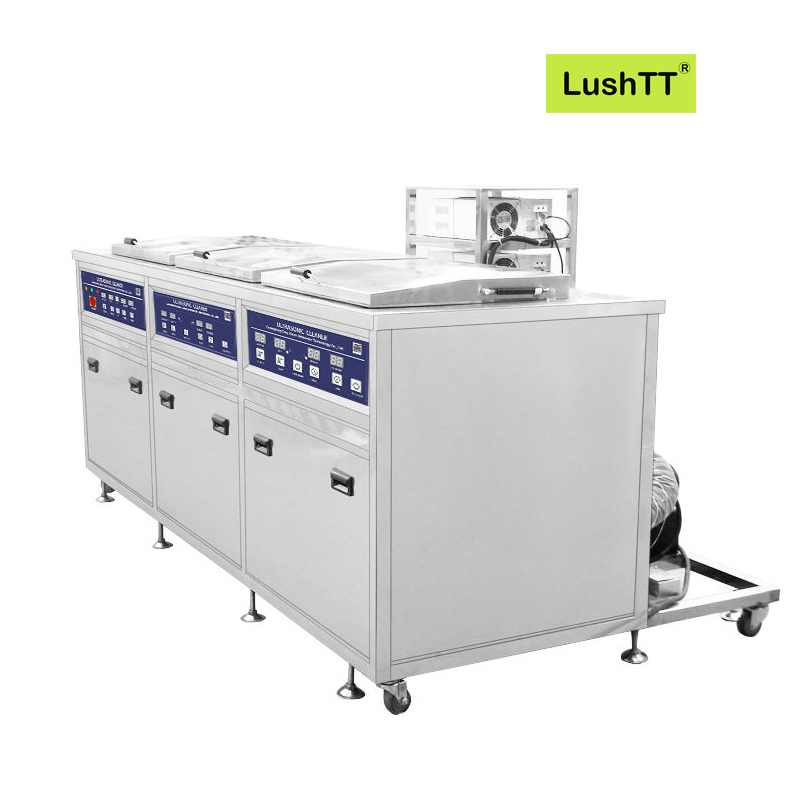

Ultrasonic Cleaning Machine 108L Three Tanks DPF Engine Injectors Parts Washer
Reference price range$3,880.00 - $3,990.00
Request a project quote
Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.
Specifications and product details
The complete original product information is kept below for technical review.
1. Model: LTT-3060CFRD

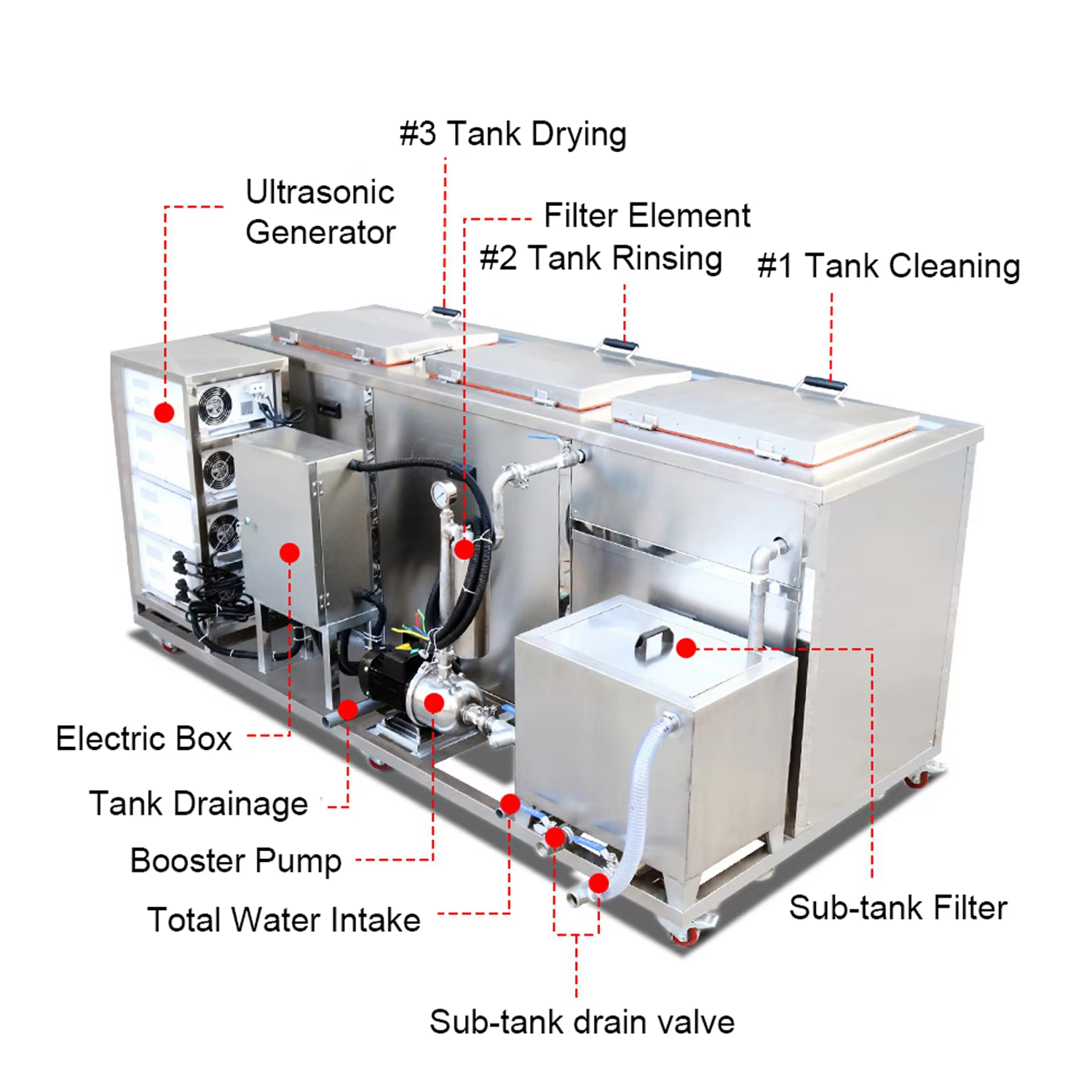

2. Tank function: 1st tank ultrasonic cleaning+heating+filtration with circulation sub-tank, 2nd tank ultrasonic rinsing+heating, 3rd tank hot air circulation drying.
3. Tank Capacity: 108L+108L+108L, ultrasonic power of each 1st and 2nd tank: 0~1500W adjustable.
4. Can customize any size as per users’ actual needs. Such as 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 235L / 264L / 360L / 540L / 560L / 960L / 1024L.
5. Frequency: 28khz or 40khz, heating Power: 3KW for each tank.
6. Temperature: RT~95°C for 1st and 2nd tank, RT~100°C or RT~150°C for the 3rd tank.
7. Inner Tank Size: 600*450*400mm(L*W*H), basket Size: 550*430*360mm(L*W*H), unit Size:2250x950x650mm(L*W*H), packaging Size: 2450*1150*850mm(L*W*H).
8. Gross Weight: 320kgs±10%

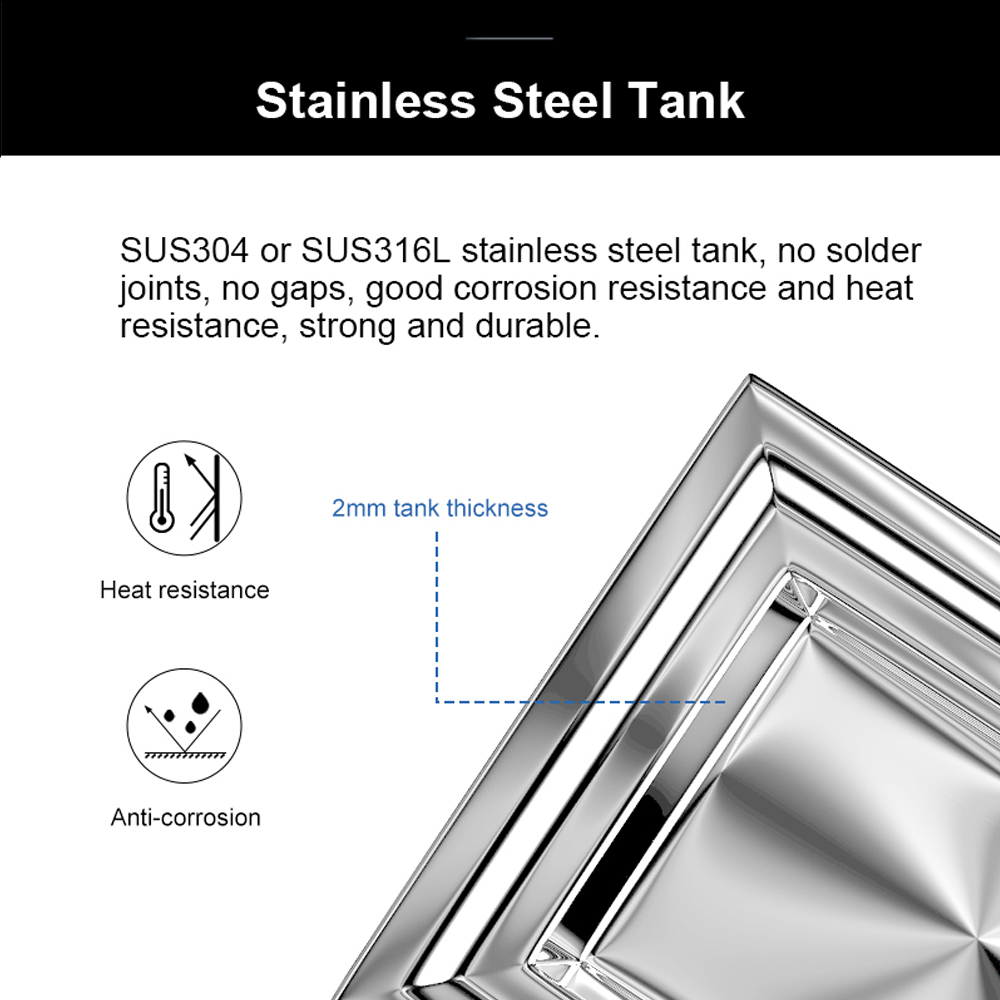

9. Inner Tank Material: SUS304 or SUS316L, can customize as per your needs.
Description
Lush Trees Tech Ultrasonic Cleaning Machine 108L Three Tanks DPF Engine Injectors Parts Washer
1. Automatic frequency tracking generator drive, modular design of the whole machine, easy to operate, convenient to maintain.
2. Digital controlled dispaly, one-button to start cleaning, can quickly remove the contaminants from the work pieces in several minutes.
3. Heating temperature is adjustable, 20-100% ultrasonic power is adjustable, cleaning time can be adjusted in minutes and hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong.

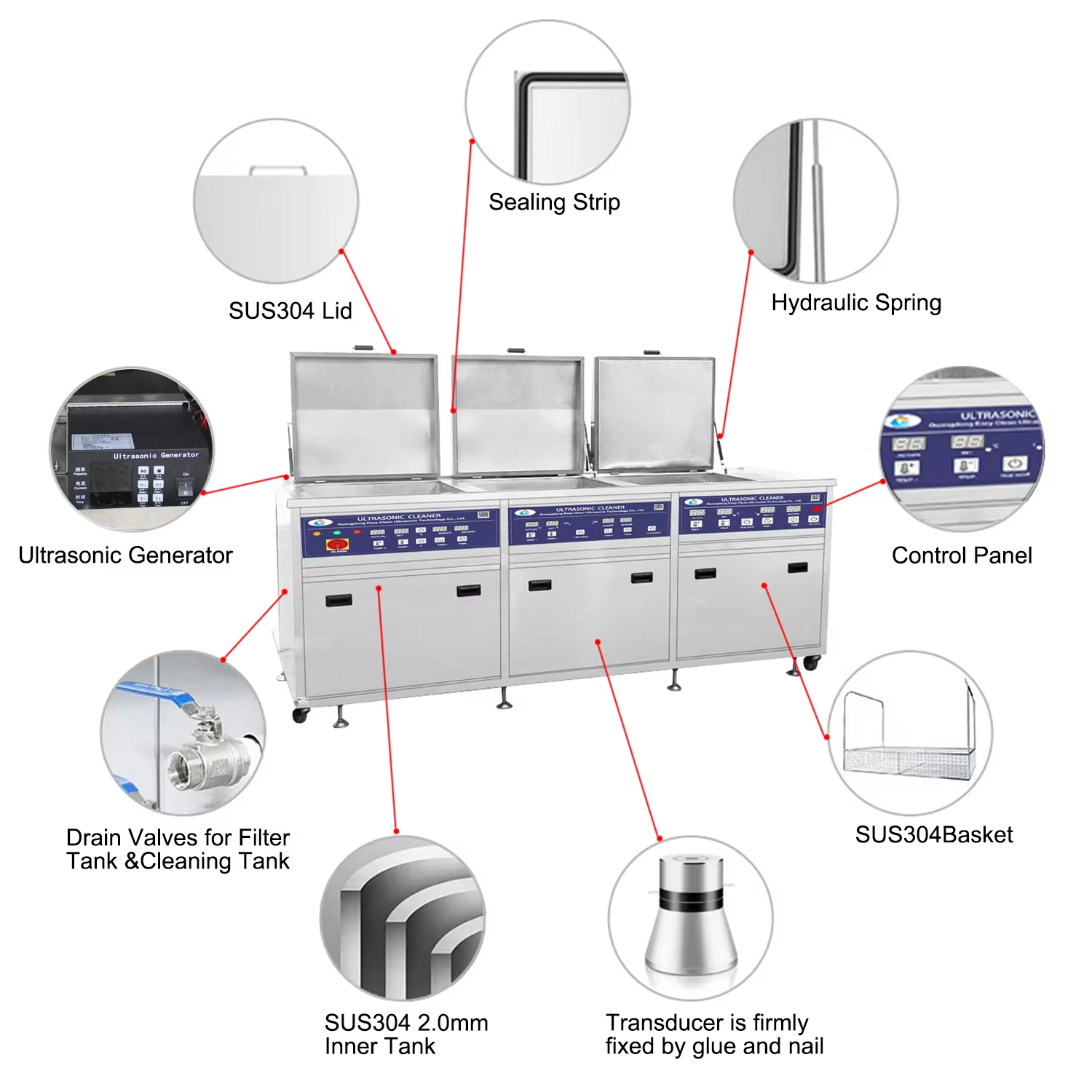

4. Ultrasonic transducers, high strength glue bonding, have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 or SUS316L 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment.
5. Pass 2500V high voltage test, strict production process and aging process, have mute cover/ 304 or 316L stainless steel washing basket, etc. And certificated by CE/ROHS/FCC.

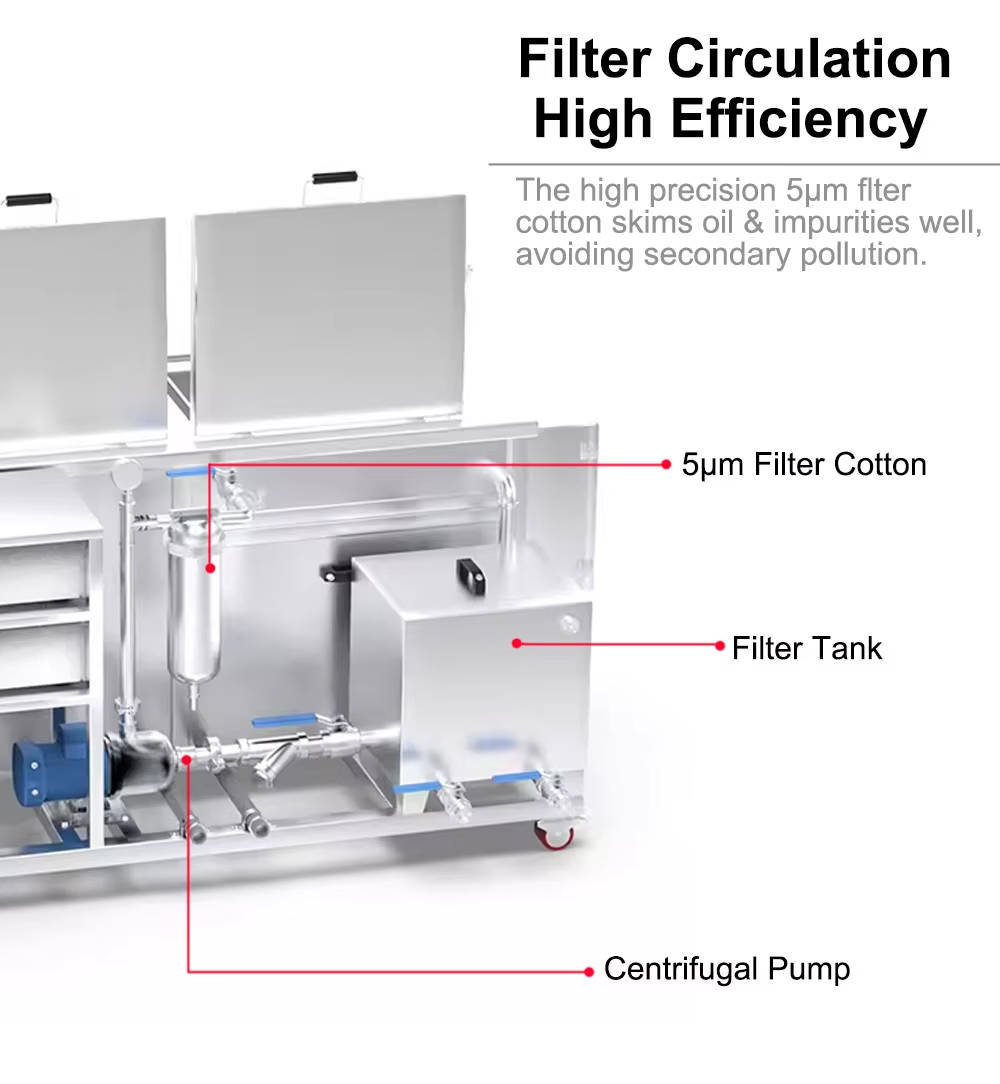

6. Equipped with flitration and circulation device, improve the cleaning effect, saves cleaning liquid and environmental friendly. Automatic basket lifting system can be added too.
Additional information
| Weight | 320 kg |
|---|---|
| Dimensions | 245 × 115 × 85 cm |
More than a machine in a box.
Production, packing, delivery and long-term project support are part of every Lush Trees Tech order.
Factory production and delivery
Support for different ways of working
You may also like…
-
Cleaning Equipment 108L Industrial Ultrasonic Cleaner For Metal Parts With Heater
Reference price range$1,400.00 - $1,800.00 View details and quote -

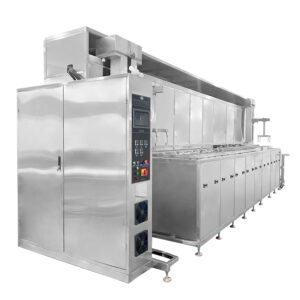

Ultrasonic Cleaning Machine Full Automatic Vacuum Washing PLC HMI Manipulator Robot Arm Device
Reference price range$68,000.00 - $69,000.00 View details and quote -
Cleaning Machine 108L Remove Scale and Rust Leak Proof Pulse Mold Waterway Cleaner
Reference price range$5,360.00 - $5,500.00 View details and quote -

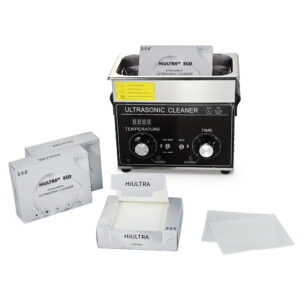

Cleaning Agent Water Based Cleaning Slice Remove Oil Stains Cleaning Sheet
Reference price range$11.00 - $18.00 View details and quote
Related products
-
Industrial Ultrasonic Cleaner 135L Three Chambers Oil Rust Flux Cleaning Machine
Reference price range$4,950.00 - $5,050.00 View details and quote -

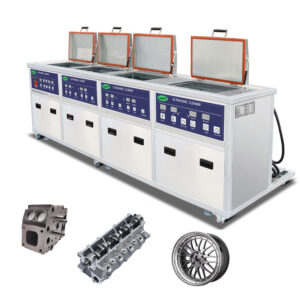

Ultrasonic Car Engine Washer with Four Tanks 108L Remove Oil Grease Dust Debris
Reference price range$6,600.00 - $7,300.00 View details and quote -

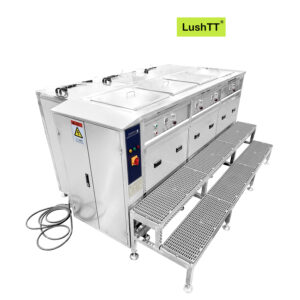

Ultrasonic Machine Four Tanks for Engine Block DPF Car Parts 108L with Filtration Dryer
