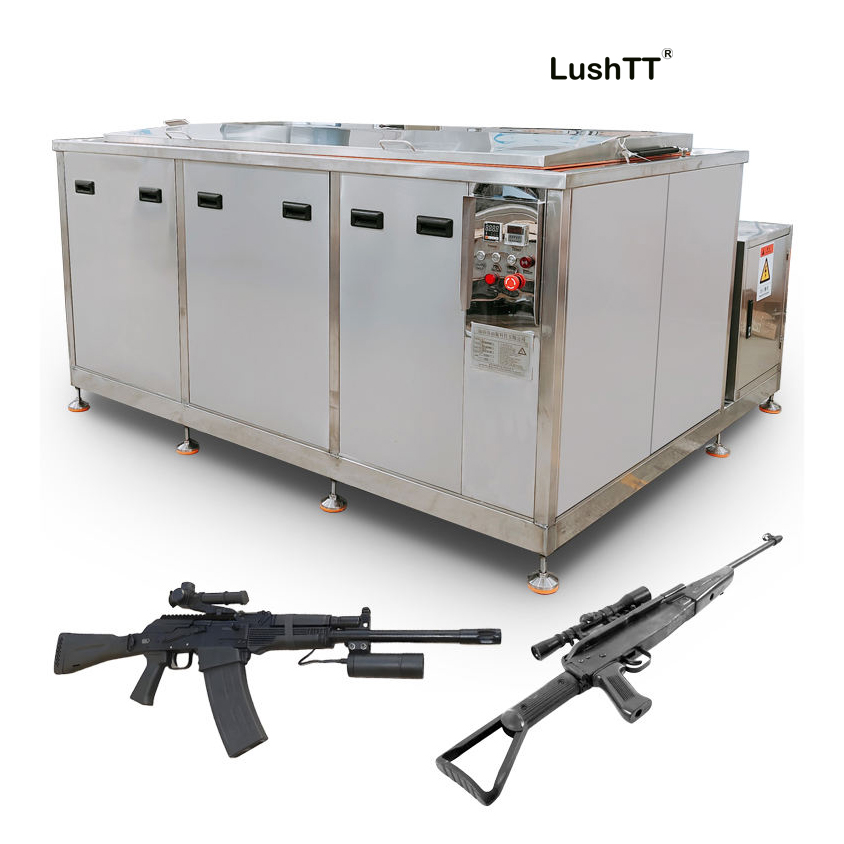

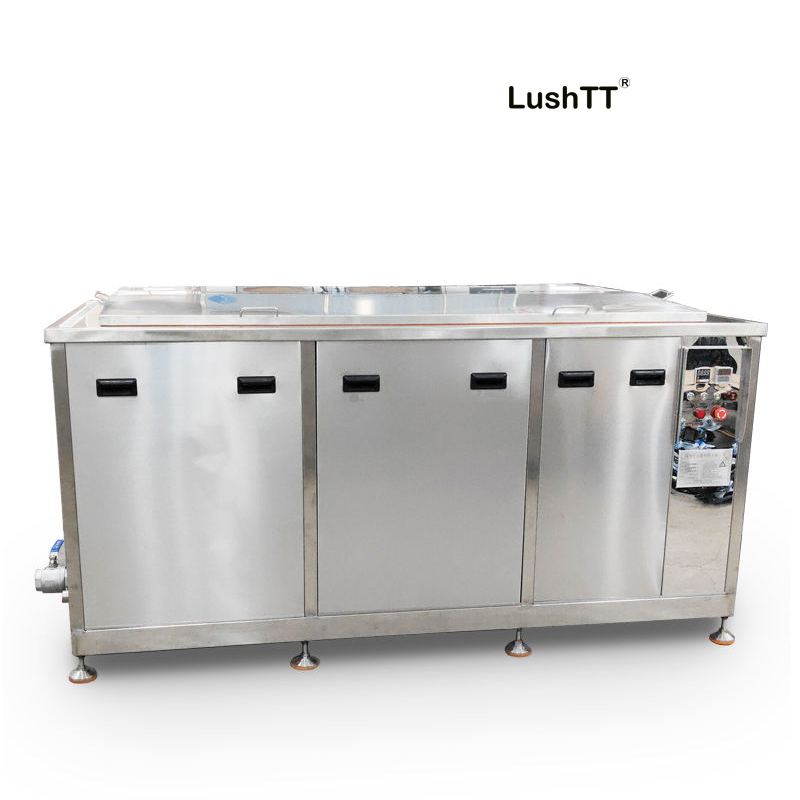

Ultrasonic Cleaning for Metal Glass Ceramic PCB Injectors Guns Riffles 1494L Bath
Reference price range$10,500.00 - $12,600.00
Request a project quote
Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.
Specifications and product details
The complete original product information is kept below for technical review.
1. Tank size: 1850*950*850mm. Tank capacity: 1494L. Tank material: stainless steel SUS304/316, or customize.
2. Unit size: 2150*1850*1150mm. Packaging size: 2350*1980*1350mm.
3. Ultrasonic system: The equipment is equipped with 200pcs of embedded transducers on the bottom. Ultrasonic power: 10KW. Ultrasonic frequency: 28kHz, can be 40kHz / 68khz / 80khz / 120khz.
4. Heating system: Stainless steel heating tubes are installed, with a heating power of 24KW. Heating temp. of the tank: 20-95℃ adjustable.

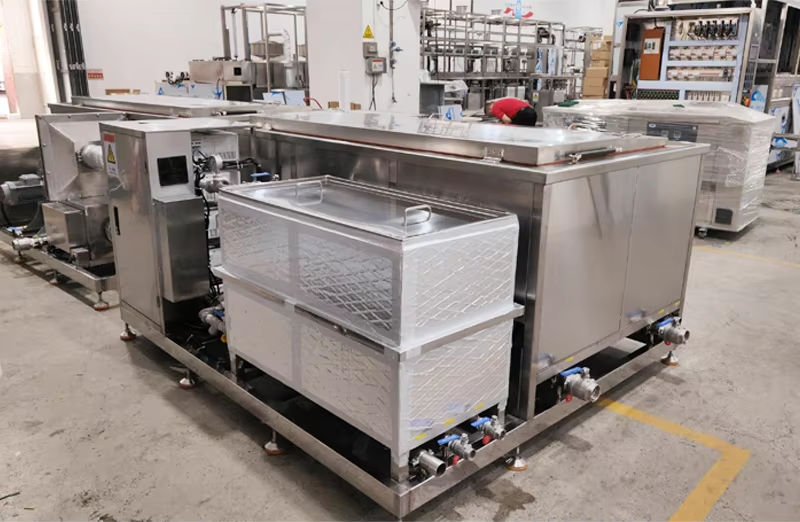

5. Circulating filtration system: The cleaning tank is equipped with an oil separation and circulating filtration attachment.
6. Power supply: AC 380V or 415V / 3 phases.
7. Timer: 1-99 hours adjustable.
8. Scram switch: Yes. Leakage overload protection system: Yes.

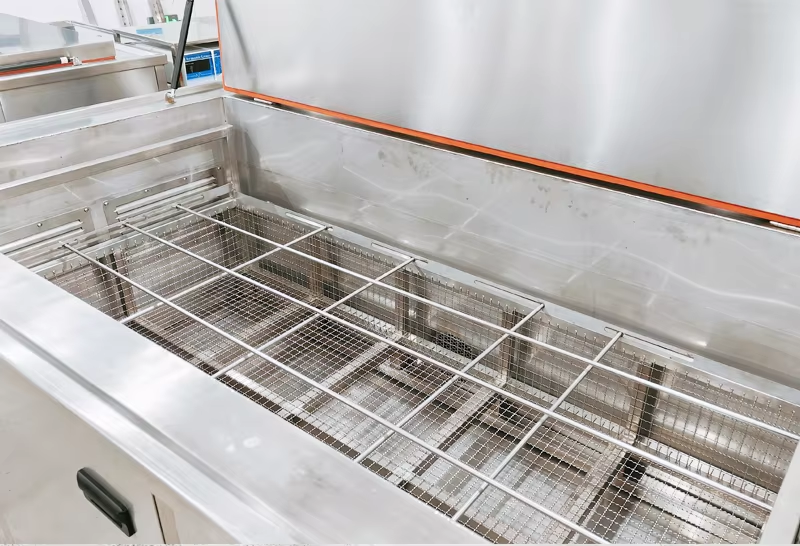

9. Other configuration: 1 set of time display, 1 set of temperature display, 1pc of stainless steel basket, movable casters with brake.
Description
Lush Trees Tech Ultrasonic Cleaning for Metal Glass Ceramic PCB Injectors Guns Riffles 1494L Bath
1. Temperature: Temperature Setting Range: Room temperature to 95 degrees Celsius. For optimal ultrasonic cleaning, it is recommended to set the temperature between 50 to 60 degrees Celsius. The displayed temperature on the temperature gauge represents the current temperature inside the tank. Use the up and down arrows on the temperature gauge to adjust the temperature value.
2. Timer: The time controller allows you to set the time range from 0 to 99 hours. You can use the “+” and “-” buttons on the timer to set the desired time. When the set time elapses, the ultrasonic operation will stop and a buzzer will sound to remind you to retrieve the items.
3. Heating switch: The heating switch controls the on/off status of the heating function.
4. Filter switch: The filter switch controls the on/off status of the filtration cycle inside the tank.
5.Ultrasonic: The ultrasonic switch controls the on/off status of the ultrasonic operation.
Additional information
| Weight | 1400 kg |
|---|---|
| Dimensions | 235 × 198 × 135 cm |
