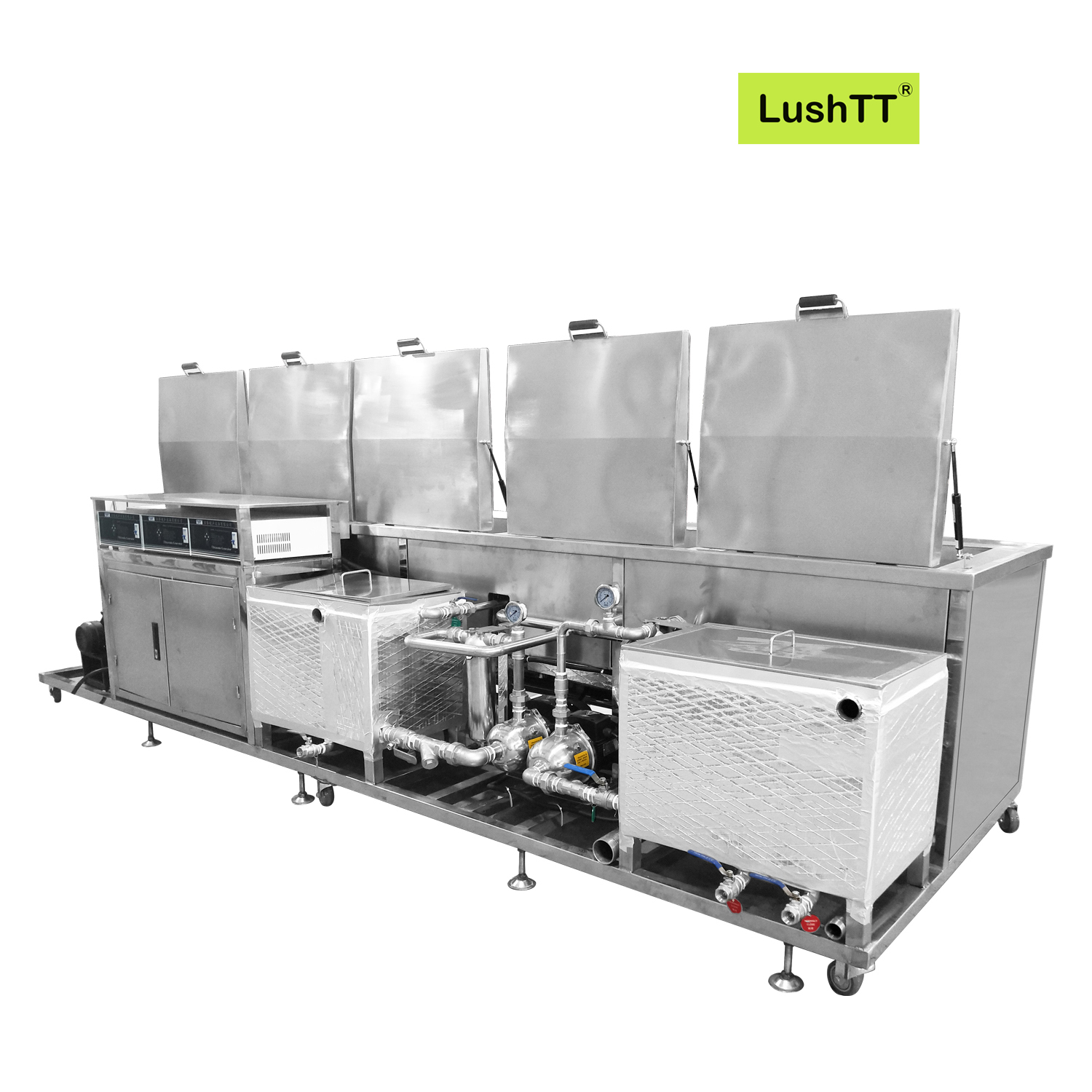

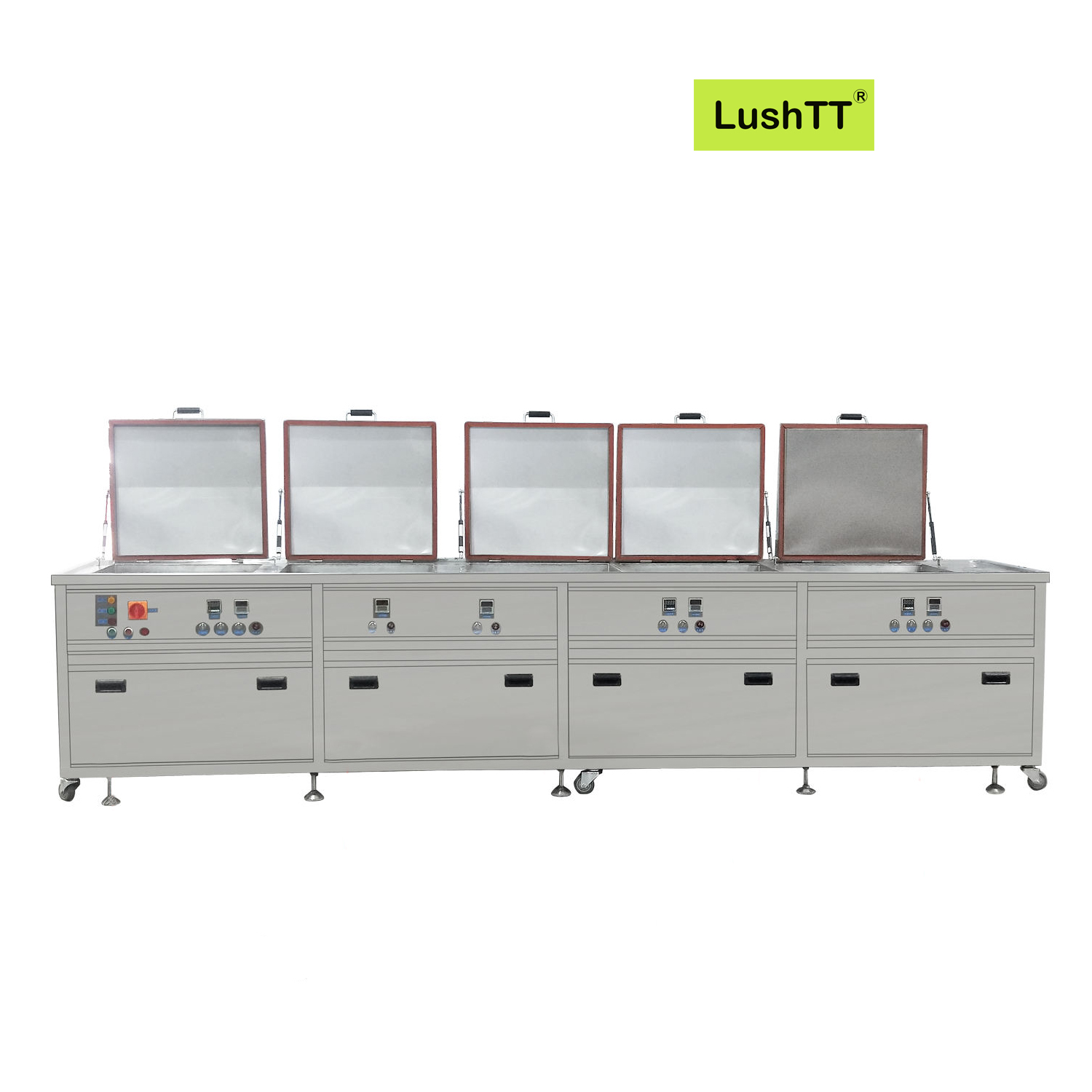

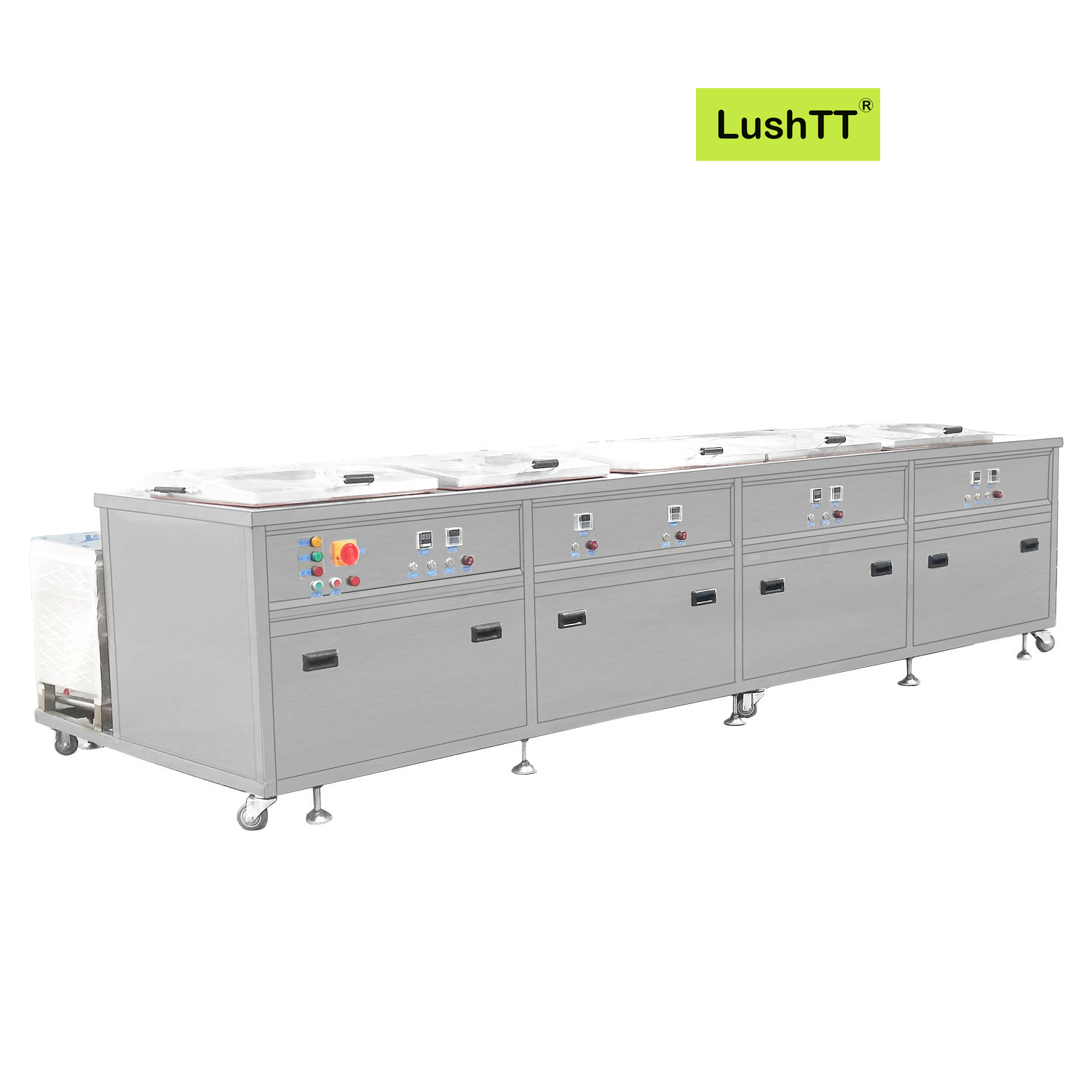

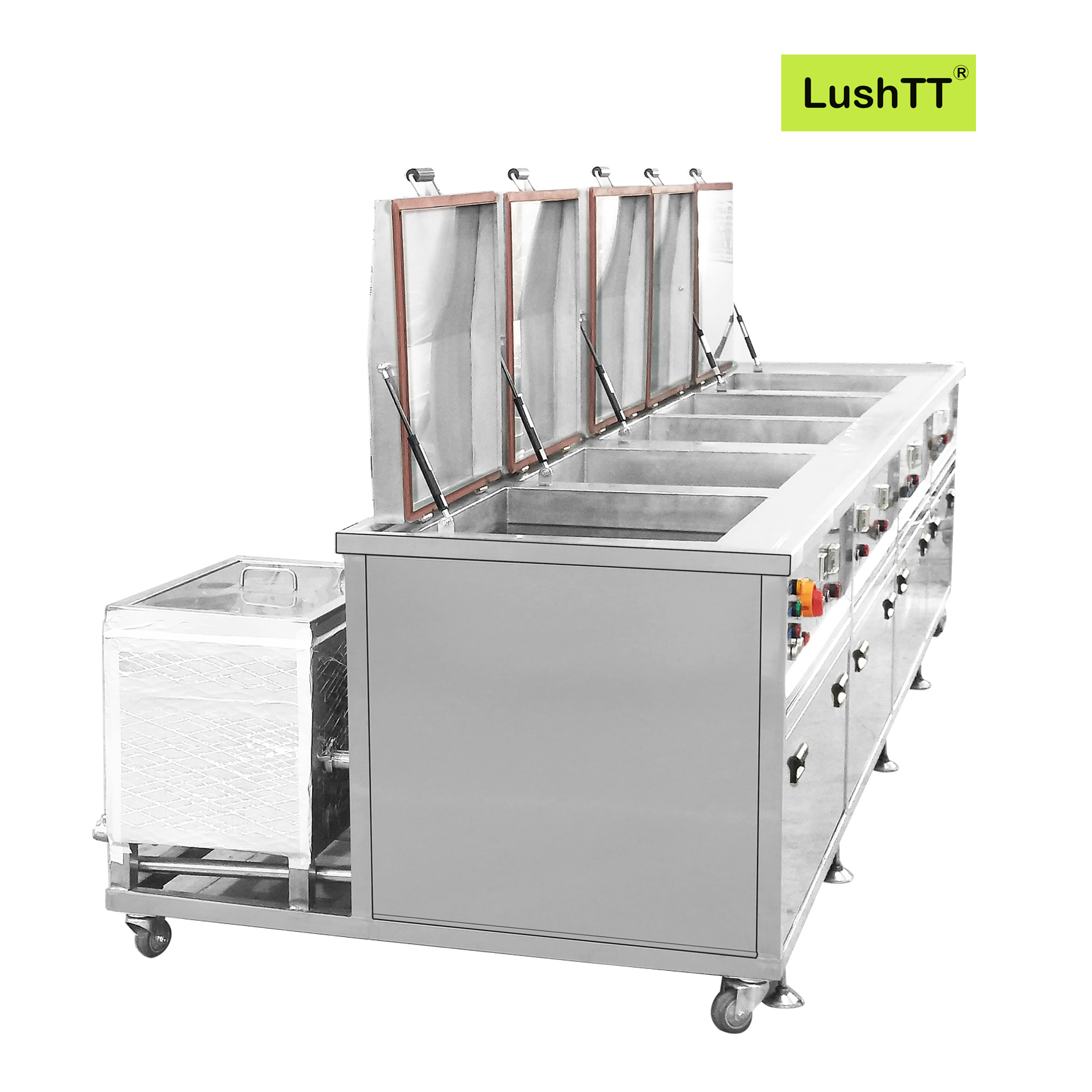

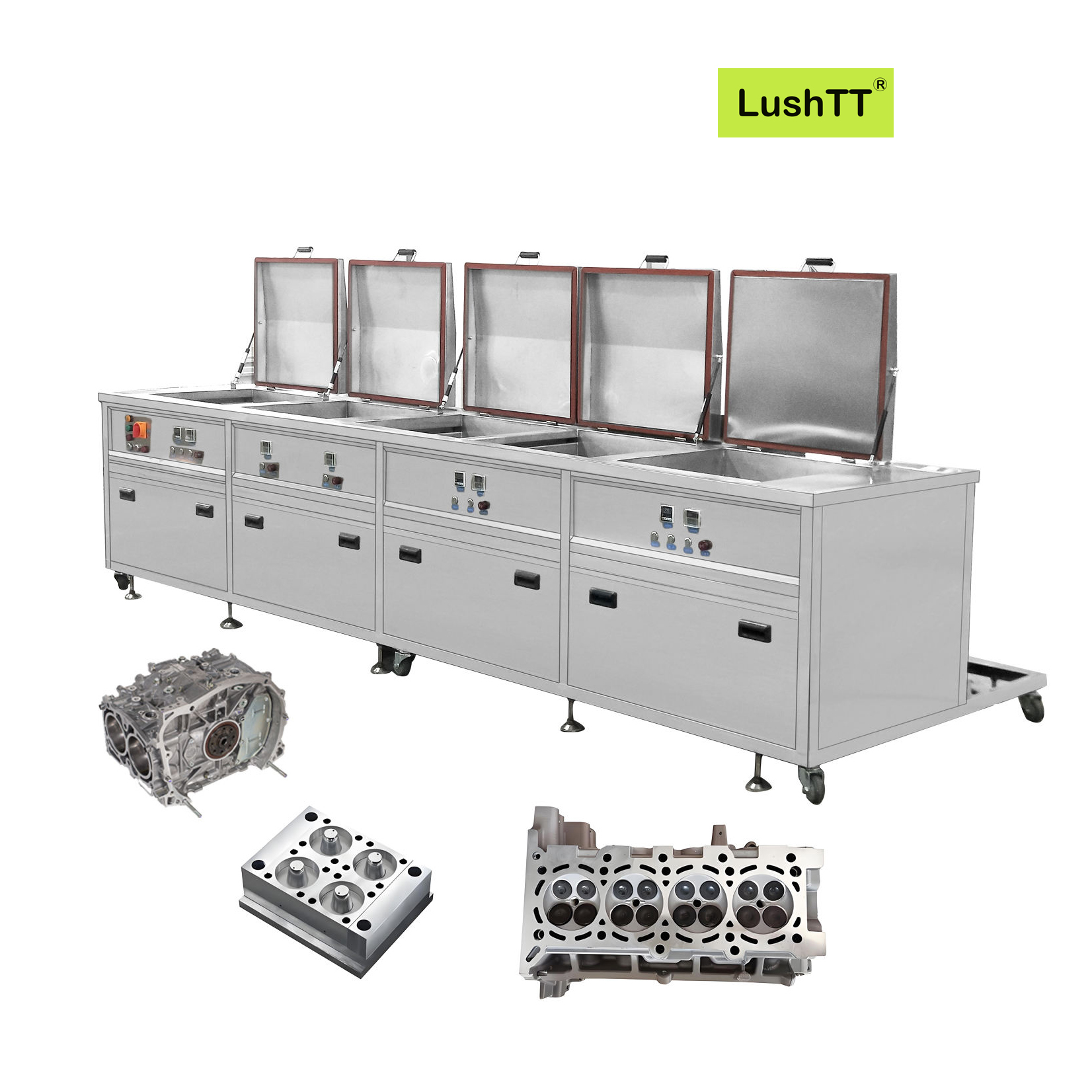

Ultrasonic Cleaning Machine Five Tanks 192L Washing Machine for Automotive Workshop
Reference price range$12,900.00 - $13,900.00
Request a project quote
Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.
Specifications and product details
The complete original product information is kept below for technical review.
1. Model: LTT-5144BFD
2. Function: 1st tank ultrasonic cleaning (with filtration and recycling) + 2nd tank ultrasonic precise cleaning + 3rd tank spraying cleaning + 4th tank ultrasonic rinsing + 5th tank hot air circulation drying.
3. Each tank size: 700*550*500mm, each tank capacity: 192L, transducers(PCS) : 144PCS, ultrasonic power of each 1st, 2nd and 4th tank: 2.4KW, heating power of each tank: 6KW.
4. Can customize any size as per users’ actual needs. Such as 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 235L / 264L / 360L / 540L / 560L / 960L / 1024L.
5. Ultrasonic frequency: 28KHZ or 40KHZ, or customize.
6. Tank material: SUS304 or SUS316L, can customize. Tank thickness: Bottom 2.5MM, 4 sides 2MM.
7. Timer of each tank: 1-99min adjustable/Continous mode.
8. Heater: 20-95c adjustable for the first 4 tanks, 20-100C or 20-150C for the 5th tank.

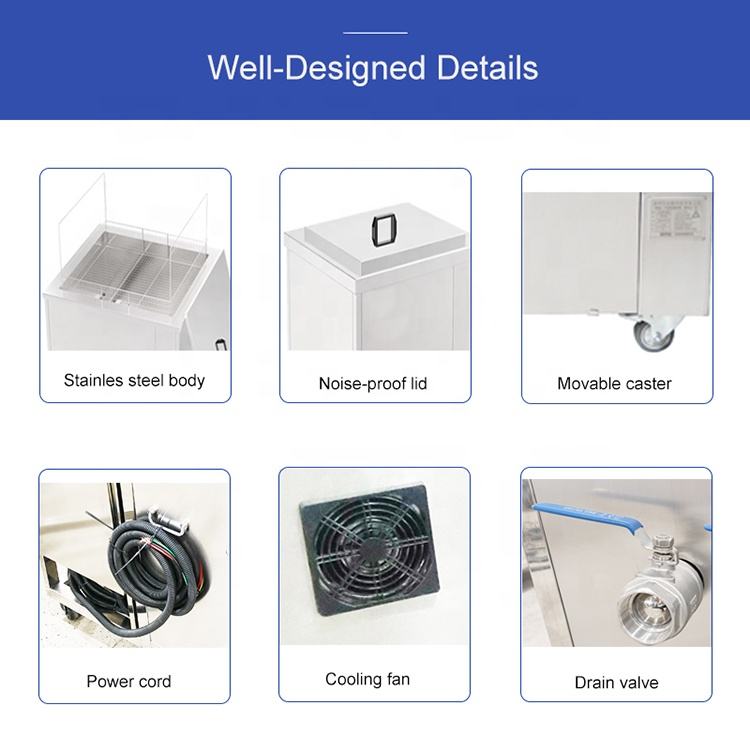

9. Drain valve: 1 inch, basket & lid: standard, equipped casters with brake.
10. Machine Voltage: AC 380V, 3 phases. Generator Voltage: AC110V or 220V, 1 phase.
Description
Lush Trees Tech Ultrasonic Cleaning Machine Five Tanks 192L Washing Machine for Automotive Workshop
1. Automatic frequency tracking generator drive, modular design of the whole machine, easy to operate, convenient to maintain.

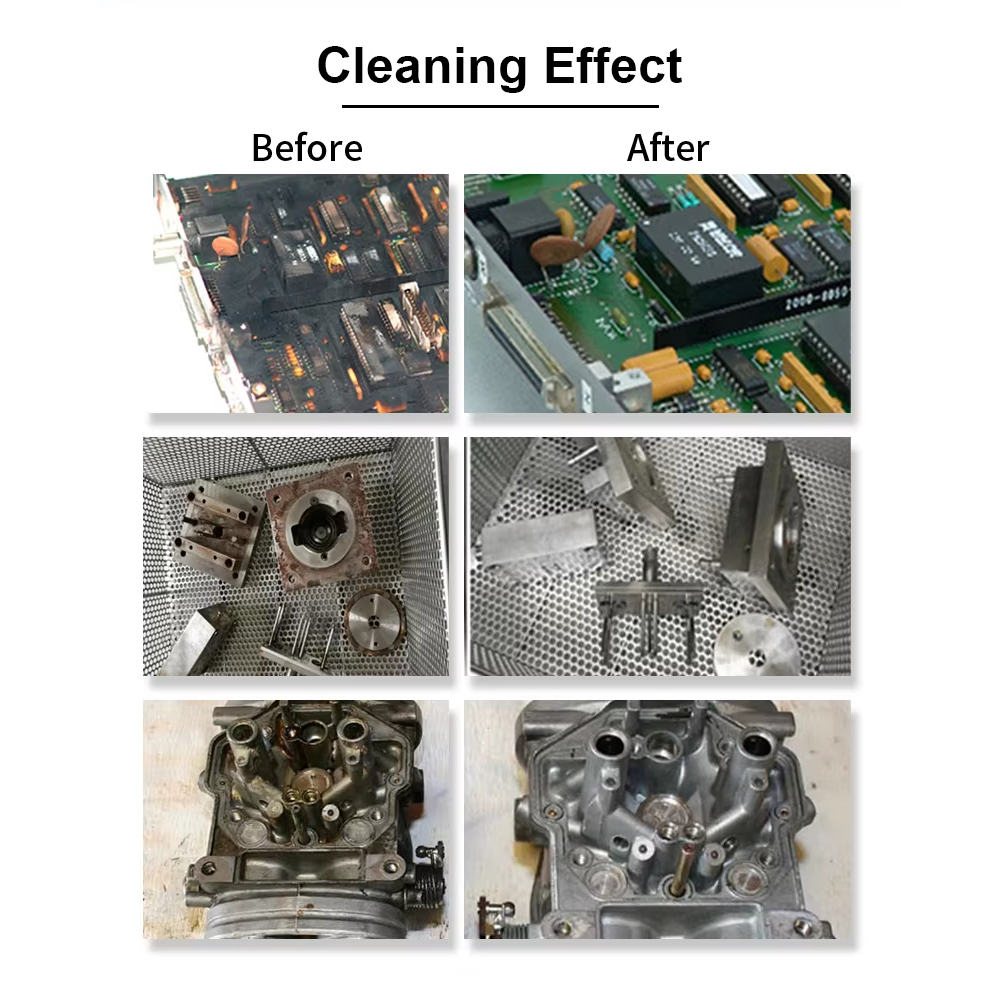

2. Digital controlled dispaly, one-button to start cleaning, can quickly remove the contaminants from the work pieces in several minutes.
3. Heating temperature is adjustable, 20-100% ultrasonic power is adjustable, cleaning time can be adjusted in minutes and hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong.

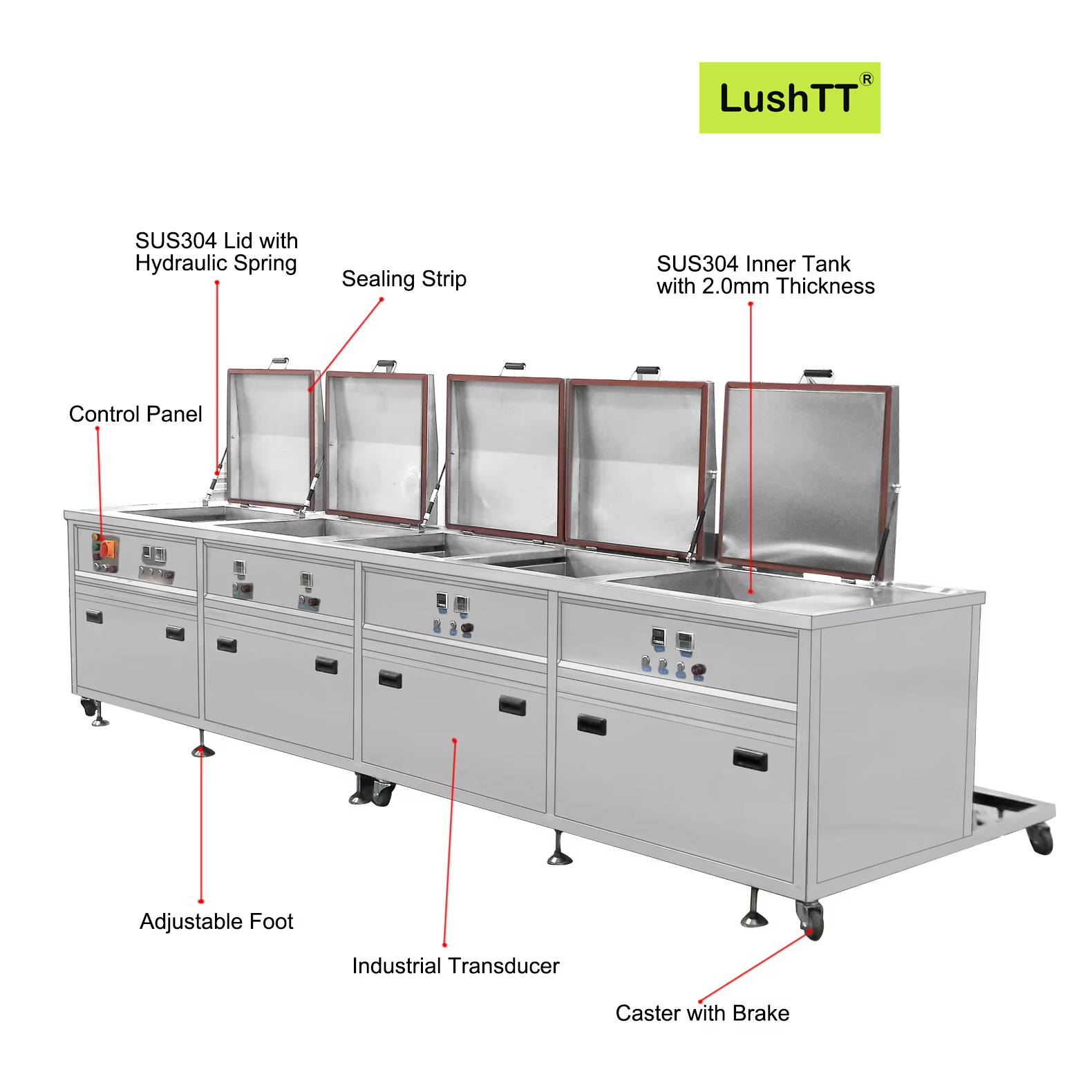

4. Ultrasonic transducers, high strength glue bonding, have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 or SUS316L 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment.
5. Pass 2500V high voltage test, strict production process and aging process, have mute cover/ 304 or 316L stainless steel washing basket, etc. And certificated by CE/ROHS/FCC.

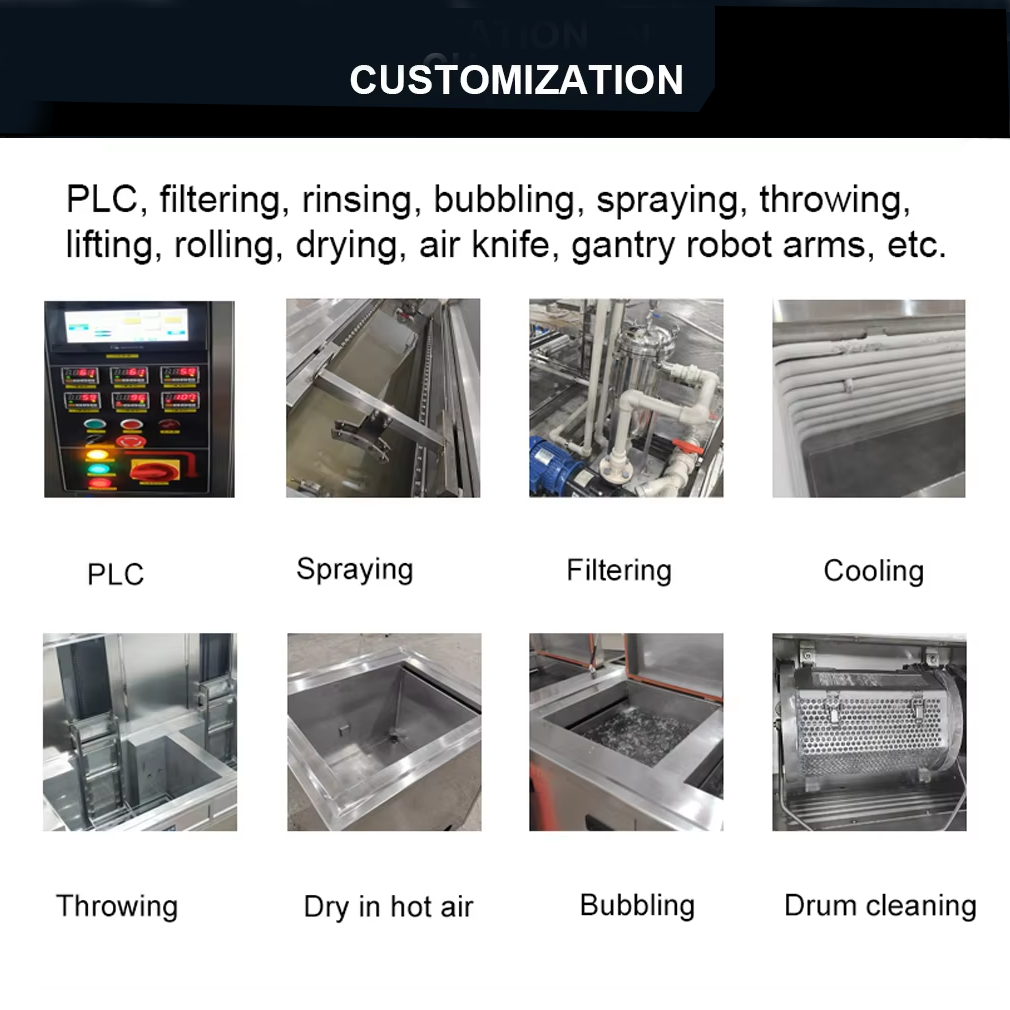

6. Equipped with flitration and circulation device, improve the cleaning effect, saves cleaning liquid and environmental friendly. Automatic basket lifting system can be added too.
Additional information
| Weight | 1600 kg |
|---|---|
| Dimensions | 550 × 170 × 105 cm |
More than a machine in a box.
Production, packing, delivery and long-term project support are part of every Lush Trees Tech order.
Factory production and delivery
Support for different ways of working
You may also like…
-
Cleaning Machine 108L Remove Scale and Rust Leak Proof Pulse Mold Waterway Cleaner
Reference price range$5,360.00 - $5,500.00 View details and quote -
Motor Cleaner Machine Five Tanks 360L DPF Injector Parts Cleaning Equipment
Reference price range$15,900.00 - $16,900.00 View details and quote -
Industrial Ultrasonic Cleaner Three Tanks 175L Rinse Dry System Cleaning Machine
Reference price range$5,500.00 - $5,600.00 View details and quote -
Stainless Steel Cleaning Equipment Immersed Ultrasonic Transducers 40khz 28khz
Reference price range$529.00 - $599.00 View details and quote -
Ultrasonic Cleaning Machine 135L Two Tanks Filter Dry Cycle Parts Washer
Reference price range$2,600.00 - $3,000.00 View details and quote -
Industrial Ultrasonic Cleaner 135L Three Chambers Oil Rust Flux Cleaning Machine
Reference price range$4,950.00 - $5,050.00 View details and quote
Related products
-

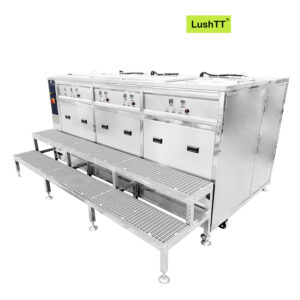

Ultrasonic Cleaning Machine Four Tanks 264L with Timer Heater Filtration Dryer
